Line Patterns

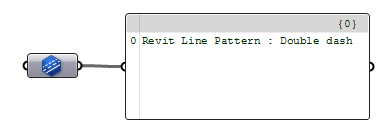

In Revit API, line patterns are represented by the DB.LinePatternElement. Solid is a special line pattern and Revit does not return a normal API type for this specific line pattern. The Line Pattern primitive in Rhino.Inside.Revit represents Line Patterns.

Find Specific Line Pattern

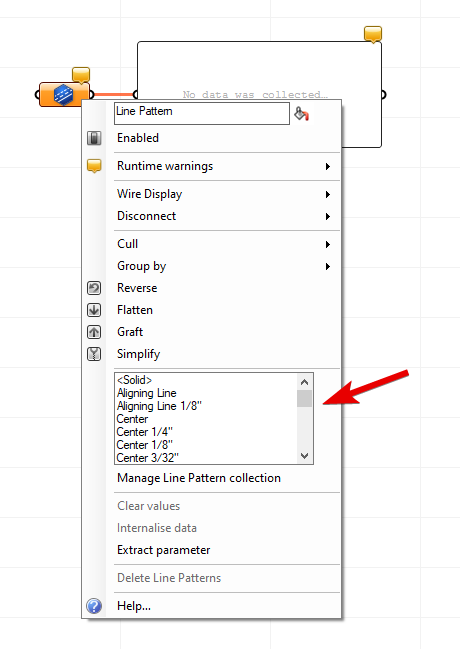

Use the context menu on the Line Pattern component to select a specific line pattern:

Fill Patterns

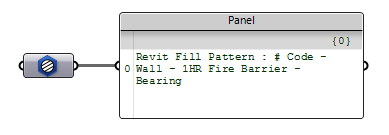

In Revit API, fill patterns are represented by the DB.FillPatternElement. Solid is also special fill pattern but in this case, Revit provides access to this pattern as a normal Revit API type.

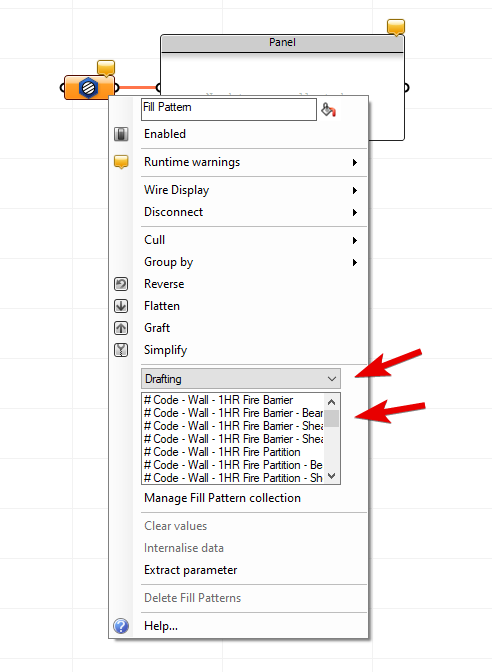

Find Specific Fill Pattern

Query Fill Patterns

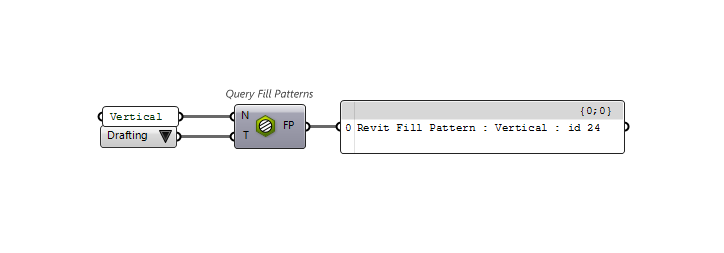

Query Fill Patterns by Type and Name wit the Query Fill Patterns+ v1.11 component.

Curve Line-Style

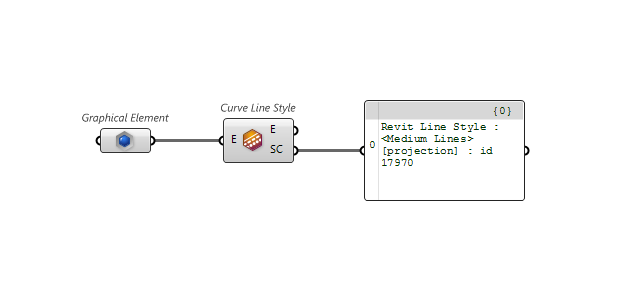

Get and Set a Curves Line-Style with the Curve Line Style+ v1.8 component.
