Structural Elements
This guide will take you through various components of Grasshopper that will allow you to create, query, modify or delete structural elements.

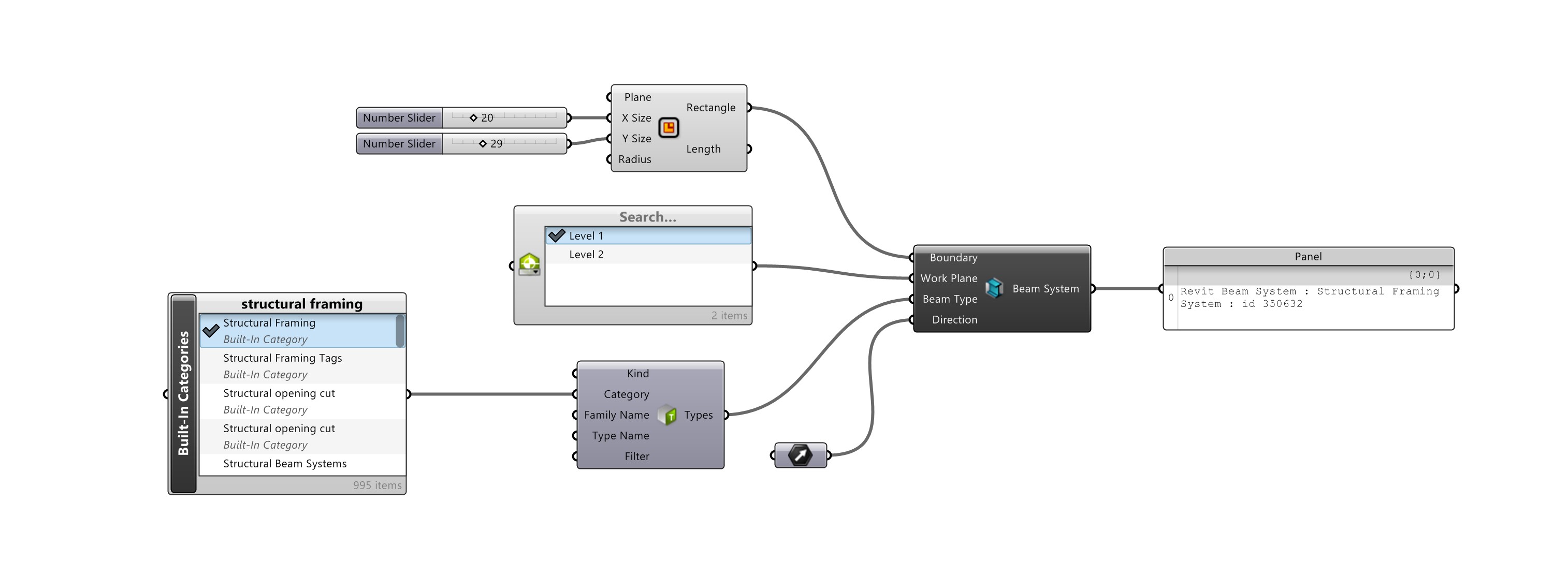

Add Beam System
Use the
Beam System+ v1.14
component to Add Beam System in the project.

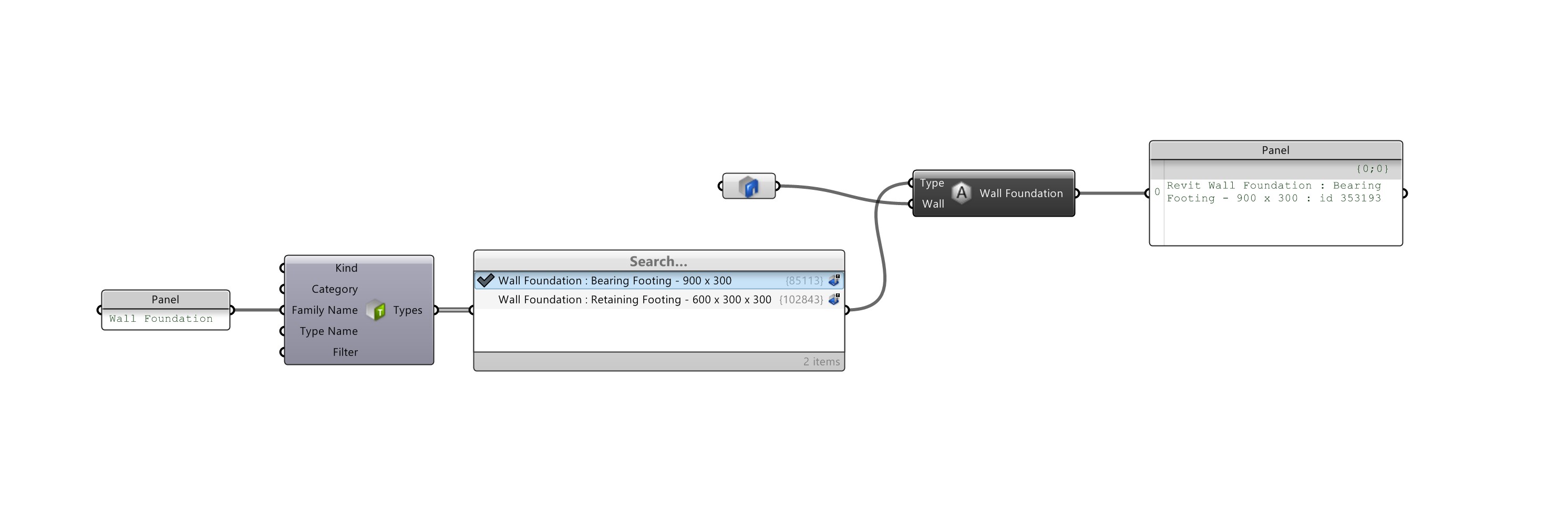

Add Wall Foundation
Use the
Wall Foundation+ v1.14
component to Add Wall Foundation in the project.

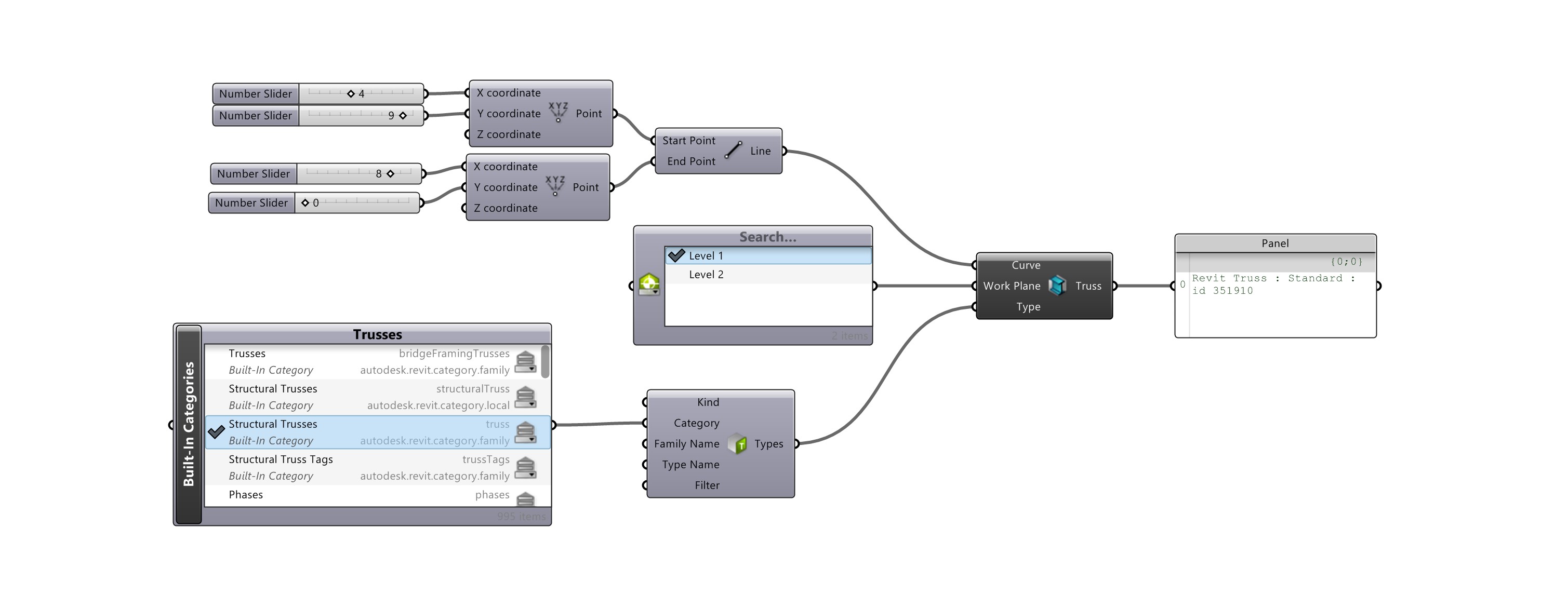

Add Truss
Use the
Add Truss+ v1.14
component to Add Truss in the project.
Working with Analytical Models
Review this introductory video where you can see how to get started working with analytical models in Revit.
