Drafting
Creating Detail Lines
To create a Detail Line, use the Add Detail Line+ v1.8 component. Use the View parameter to select the view where you want to add the element, and pass the open curve as input as well:

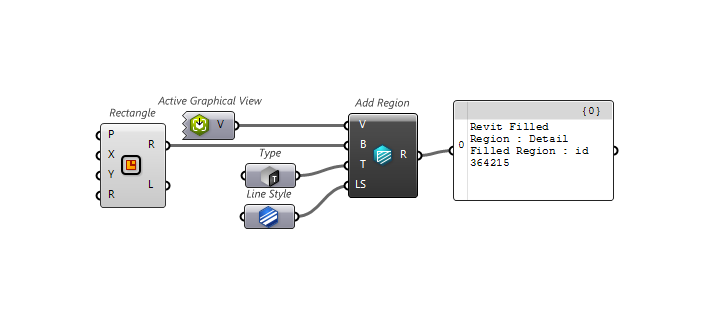

Creating Add Regions
You can create a Region by using the Add Region+ v1.8 component. Select the view where you will create the filled region through the View parameter,and pass the profile as input. Note that the profile must be a closed loop, planar, and horizontal.
Take into account we can not create Masking Regions through the Revit API. However, by creating a region completely inscribed in another it will be a mask for the outer one.

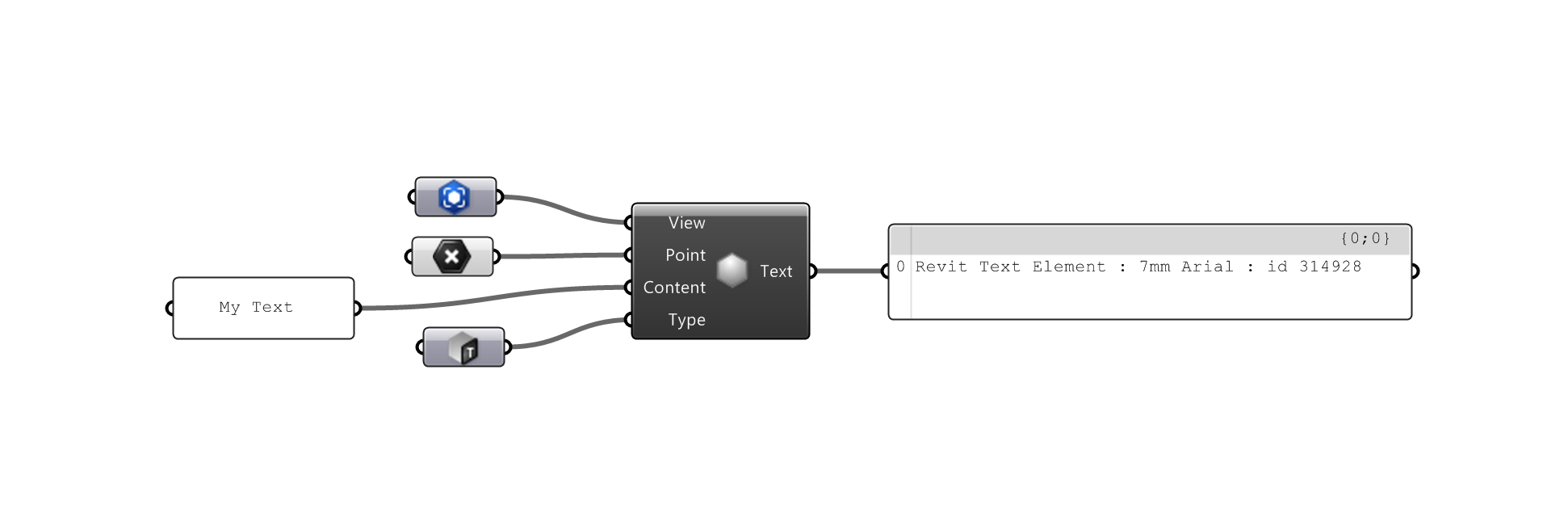

Creating Texts
Texts can be added thanks to the Add Text+ v1.8 component. Use the View parameter to select the view where you want to add the element, and pass the content as input as well:

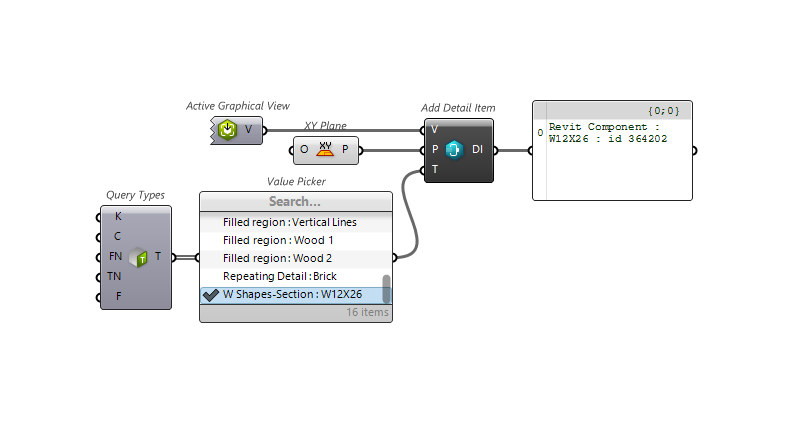

Add Detail Item
Place 2D Detail Item Families with the Add Detail Item+ v1.8 component. The component requires a View, Plane or Point and a Detail Family Type.

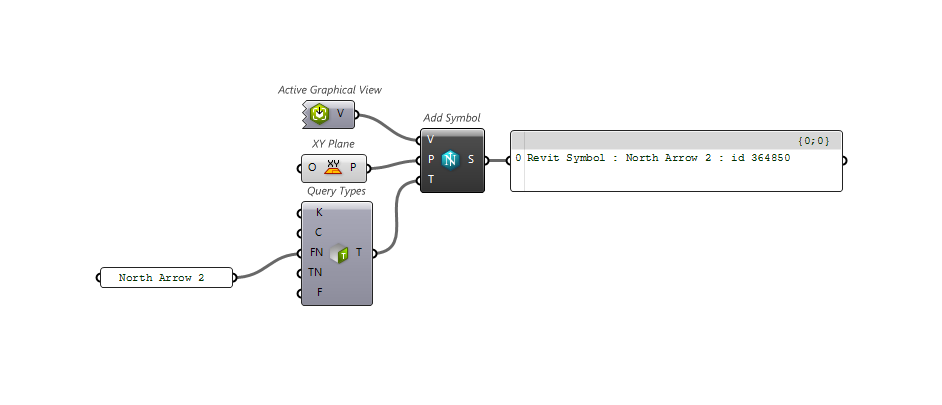

Add Symbol
Revit Symbols can be placed with the Add Symbol+ v1.8 component. The component requires a View, Plane or Point and a Symbol Family Type.
Dimensions
In Revit API, Dimensions of all types are represented by the DB.Dimension. The Dimension primitive in Rhino.Inside.Revit represents a Dimension. |

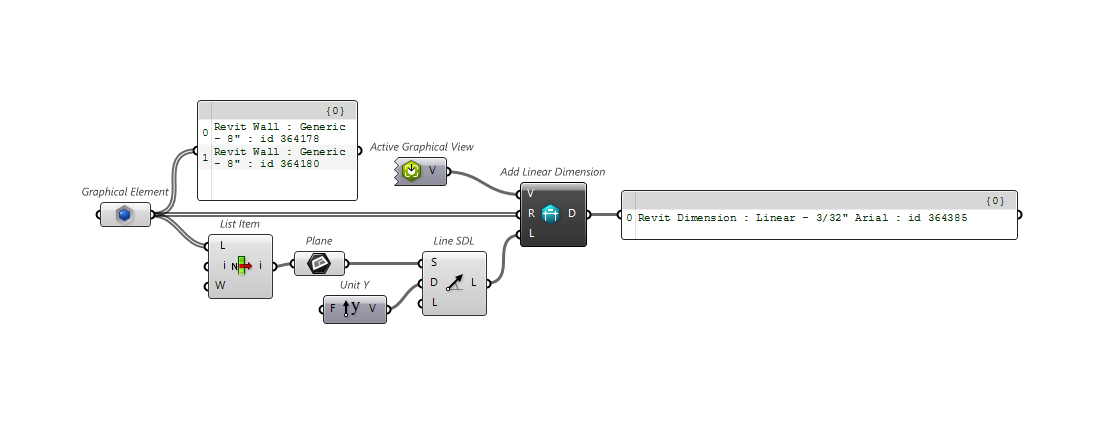

Creating Linear Dimensions
Use the Add Linear Dimension+ v1.8 component to create a new Linear Dimension on the given references. To place the dimension select a Line as input as well:

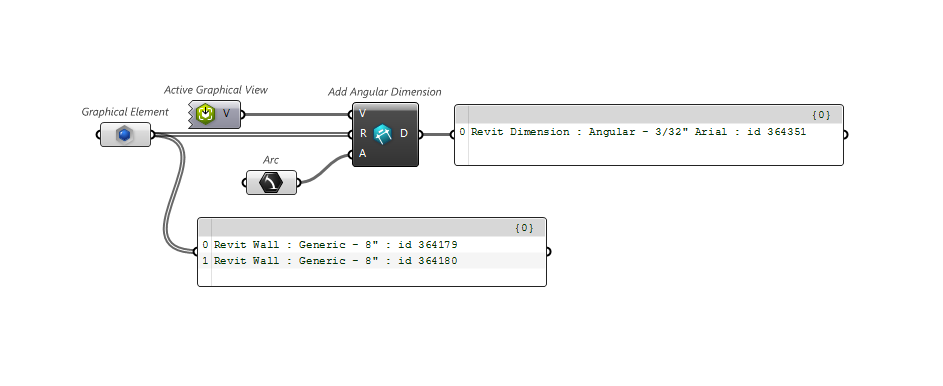

Creating Angular Dimensions
To create an Angular Dimension, use the Add Angular Dimension+ v1.8 component based on the given references. Select an arc to place the dimension as well:

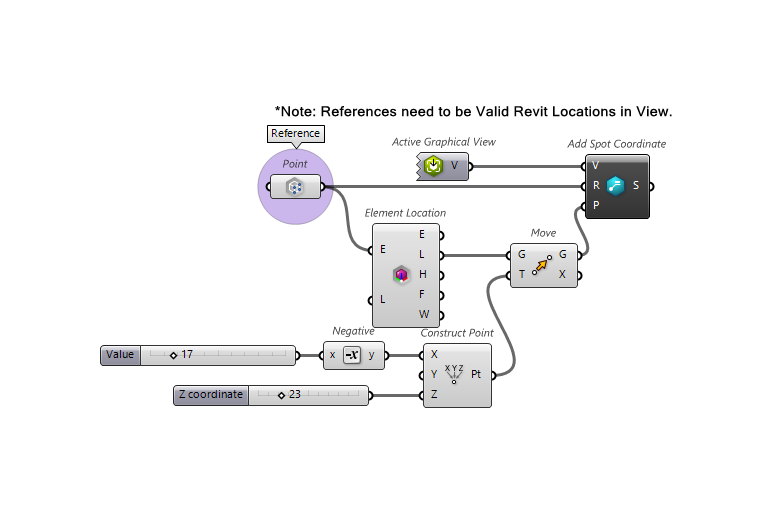

Adding Spot Coordinate
To create an Angular Dimension, use the Add Spot Coordinate+ v1.8 component based on the given references. Select an arc to place the dimension as well:

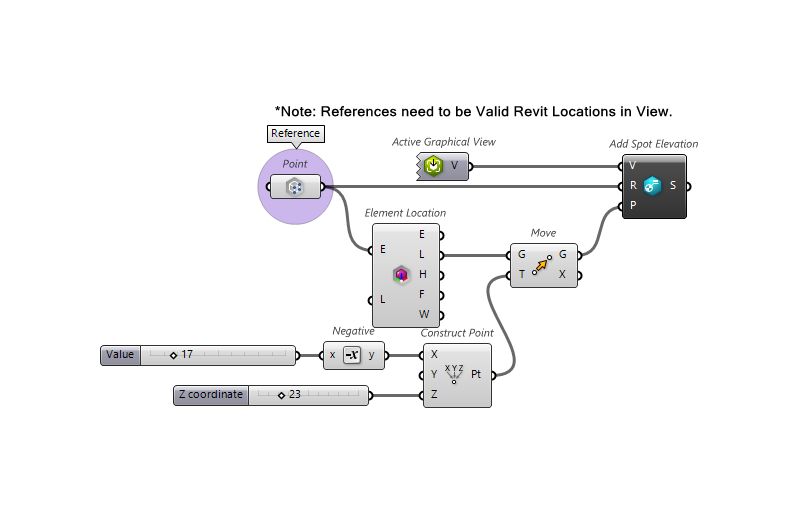

Adding Spot Elevation
Spot Elevations can be created using the Add Spot Elevation+ v1.8 component. To place a valid view (not drafting or unlocked 3D), Revit reference and location are required. Right click the Revit Point component to set a Valid reference.
Tags

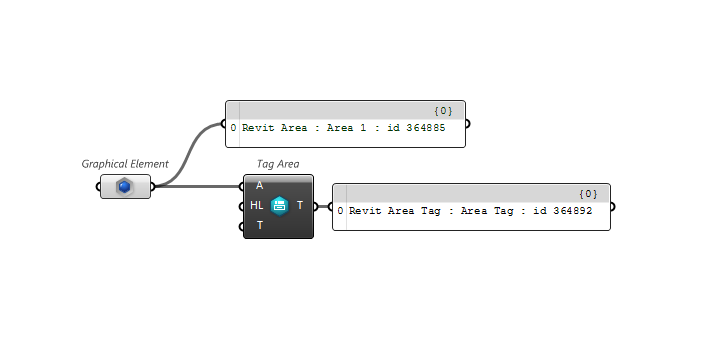

Add Area Tag
In an Area Plan use the Tag Area+ v1.7 component to add your Tag. The minimum required for this component is a Revit Area.

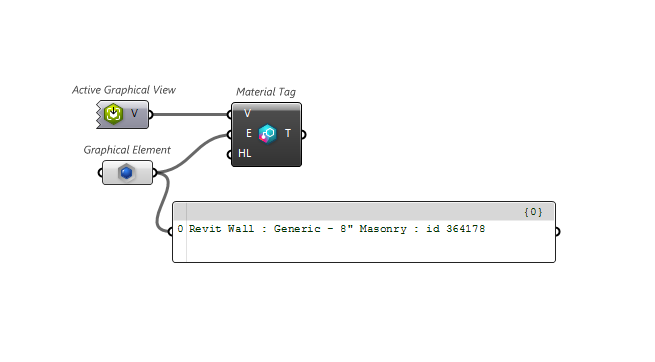

Add Material Tag
To create an Material Tag, give the Material Tag+ v1.8 an Element with a Material and valid View to tag in.
Add Multi-Category Tag
To create an Multi-Category Tag, give the Multi-Category Tag+ v1.8 an Element and valid View to tag in.
Revisions

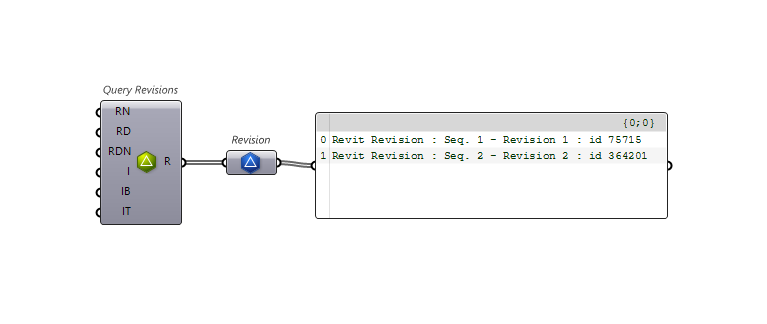

Query Revisions
Get all the Documents Revisions with the Query Revisions+ v1.8 component.

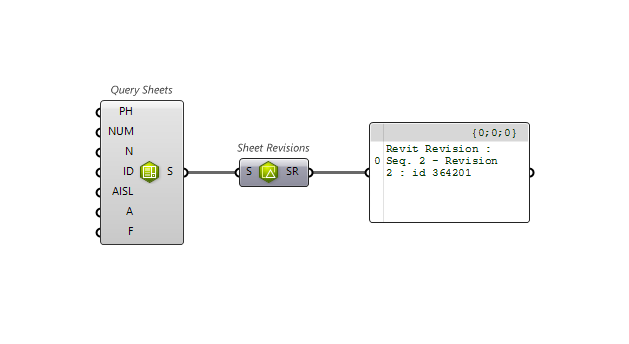

Sheet Revisions
Get all the Sheets Revisions with the Sheet Revisions+ v1.11 component.

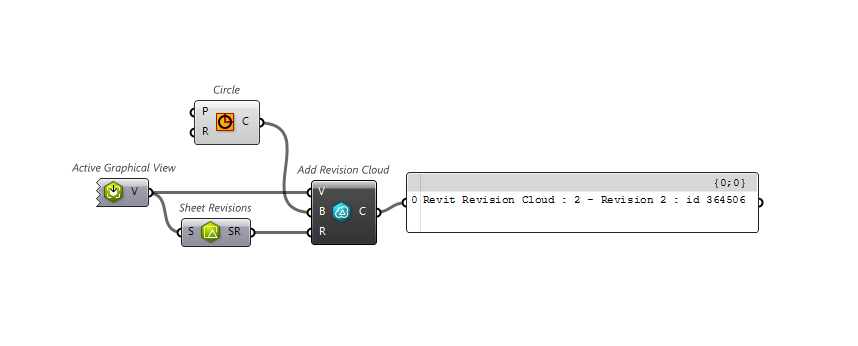

Add Revision Cloud
Get all the Sheets Revisions with the Add Revision Cloud+ v1.8 component.
Images

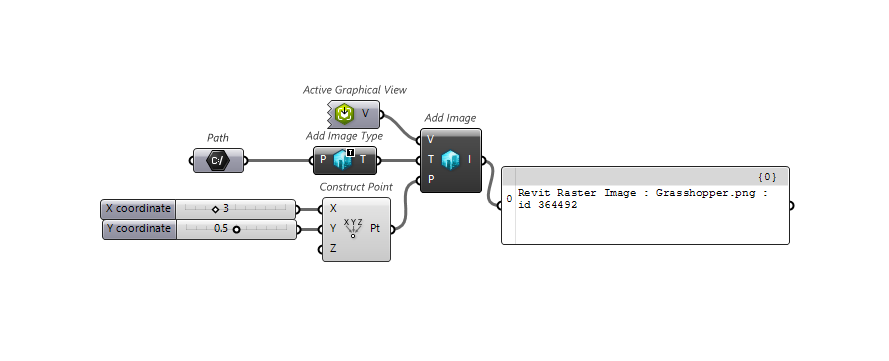

Add Image
Add an image resource using the Add Image+ v1.11 component.

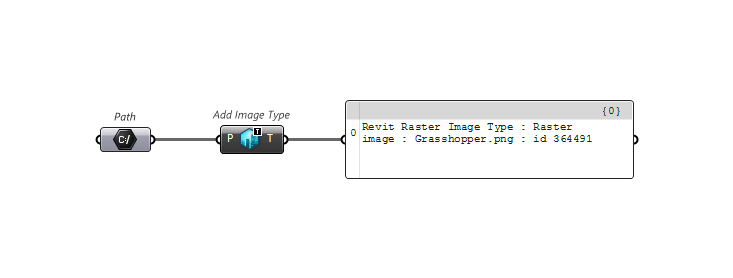

Add Image Type
Create an Image Type from you Image Resource with the Add Image Type+ v1.11 component.
