Spatial Elements
 |
In Revit API, Spatial Elements are represented by the DB.SpatialElement. This type is then used to create custom spatial types for Rooms (DB.Architecture.Room), Spaces (DB.Mechanical.Space), and Areas (DB.Area). |

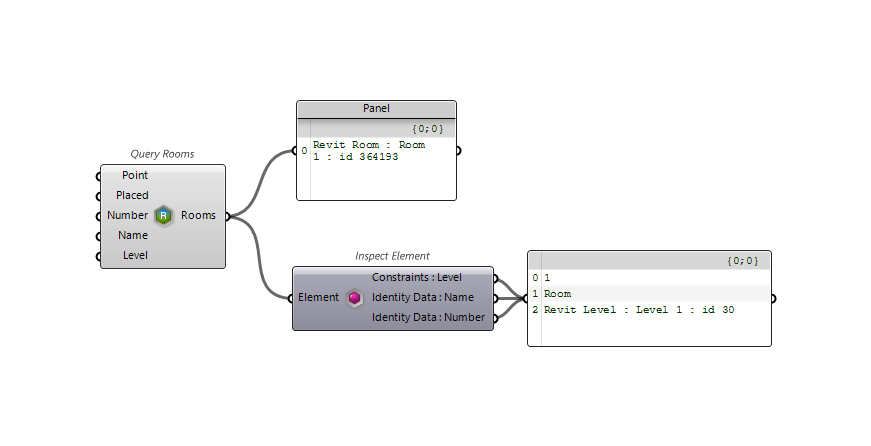

Querying Rooms
Use the
Query Rooms+ v1.7
component to gather all Rooms or filter by
criteria.

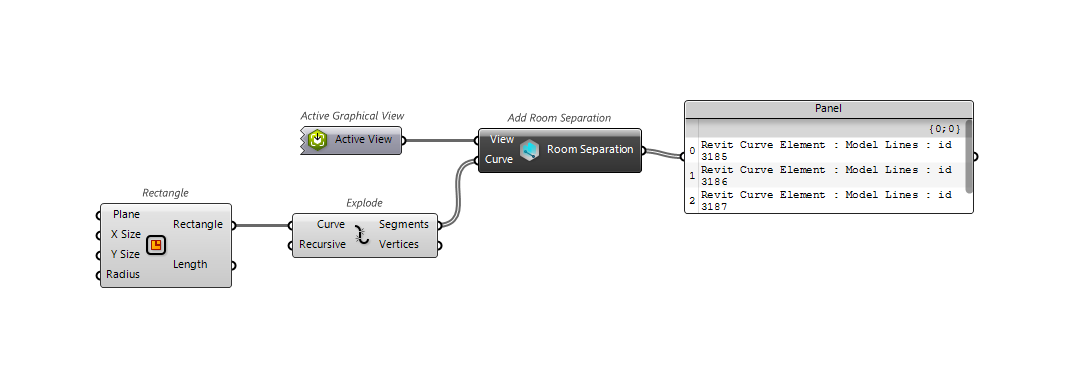

Add Room Separation Lines
The
Add Room Separation+ v1.7
component will add individual Separation Lines to a view.

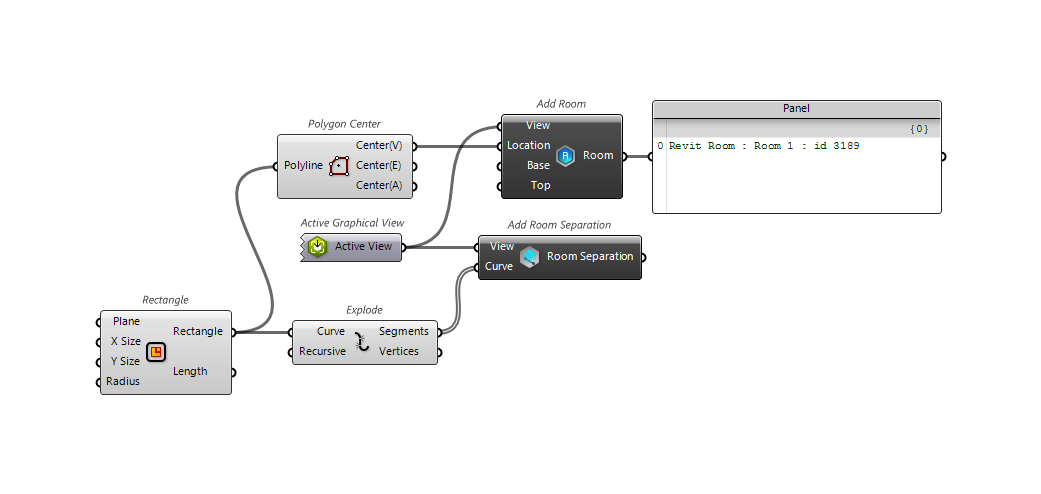

Add Rooms
The
Add Room+ v1.7
component will add Rooms to a view given a location.

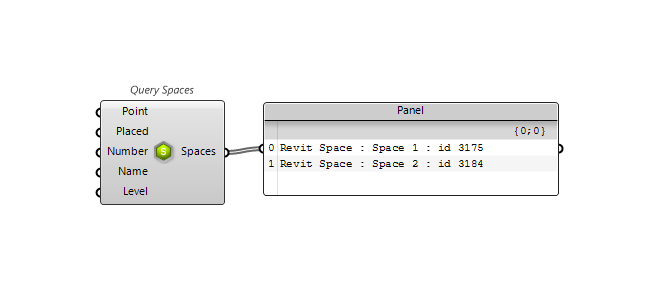

Querying Spaces
Use the
Query Spaces+ v1.7
to gather all Spaces or filter by
criteria.

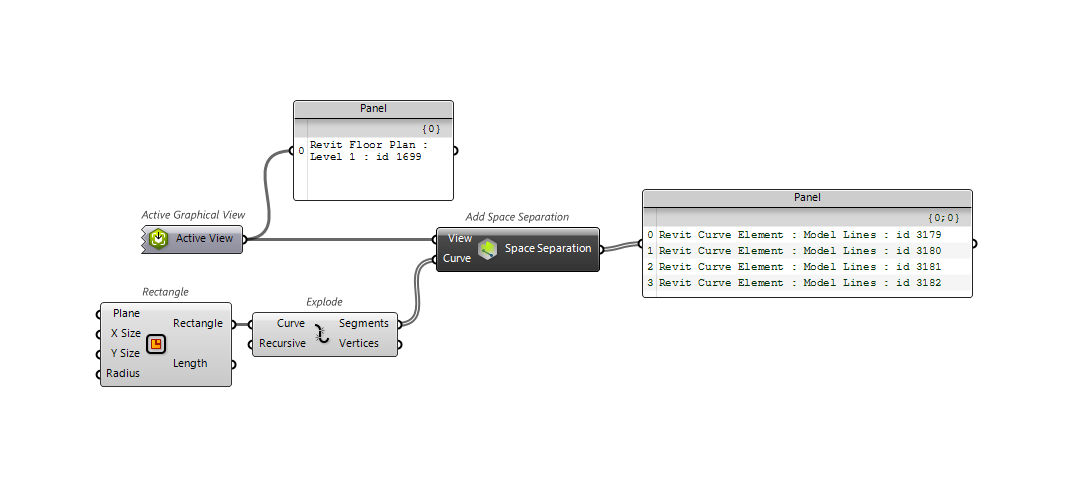

Add Space Separation Lines
The
Add Space Separation+ v1.7
component will add individual Space Separation Lines to a view.

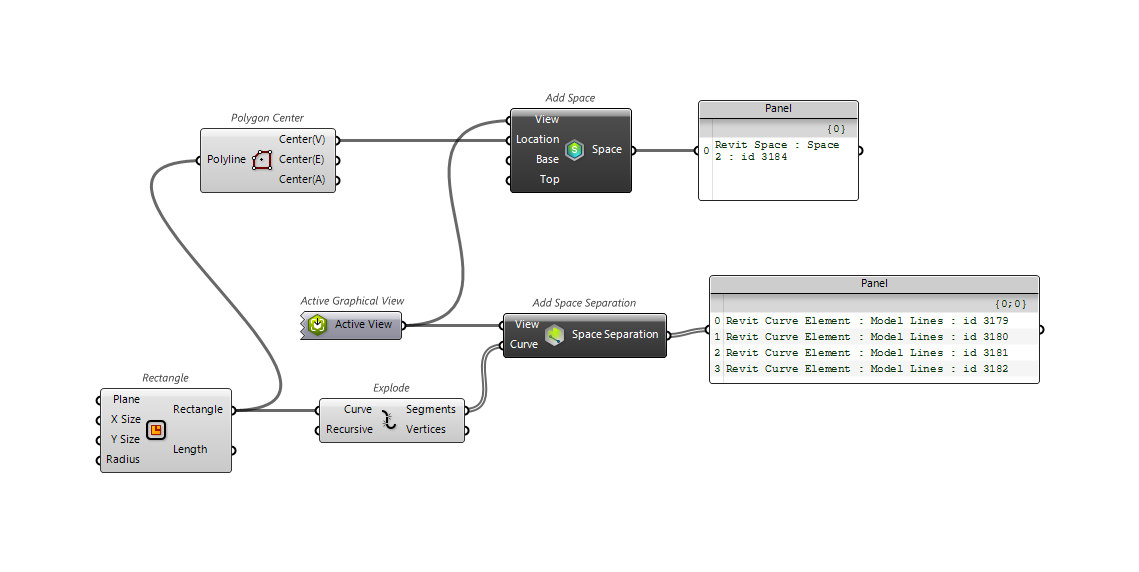

Add Spaces
The
Add Space+ v1.7
component will add Spaces to a view given a location.

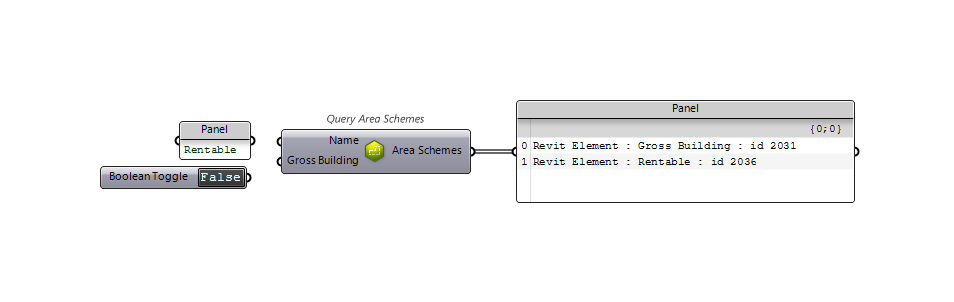

Querying Area Schemes
Use the
Query Area Schemes+ v1.12
to get all Area Schemes or filter by Name.

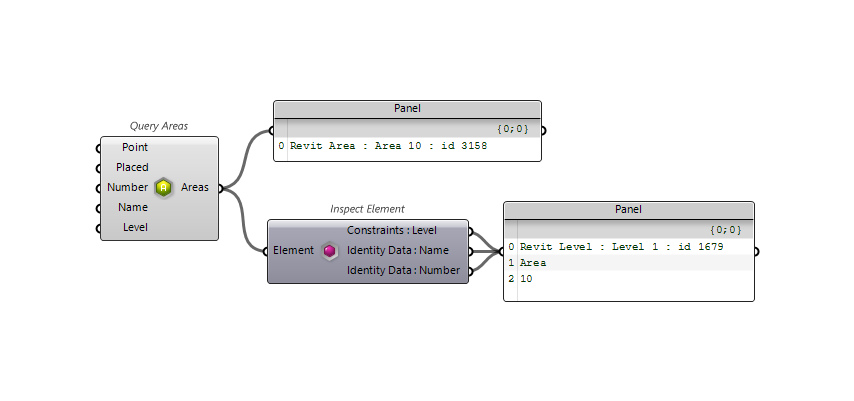

Querying Areas
Use the
Query Areas+ v1.7
to gather all Areas or filter by
criteria.

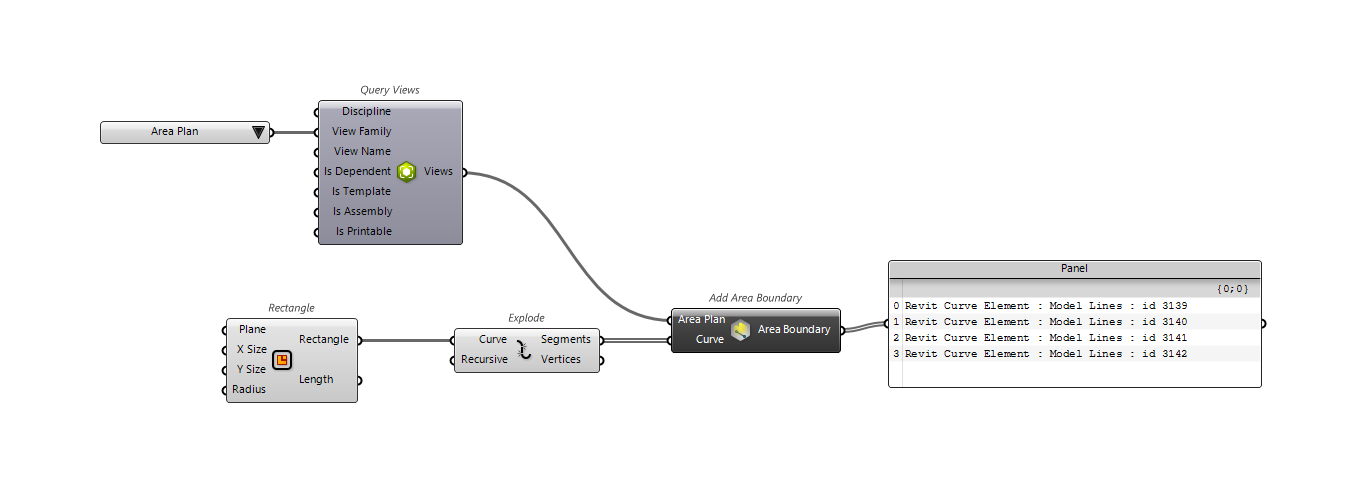

Add Area Boundary Lines
Use the
Add Area Boundary+ v1.7
to add individual Area Boundary Lines

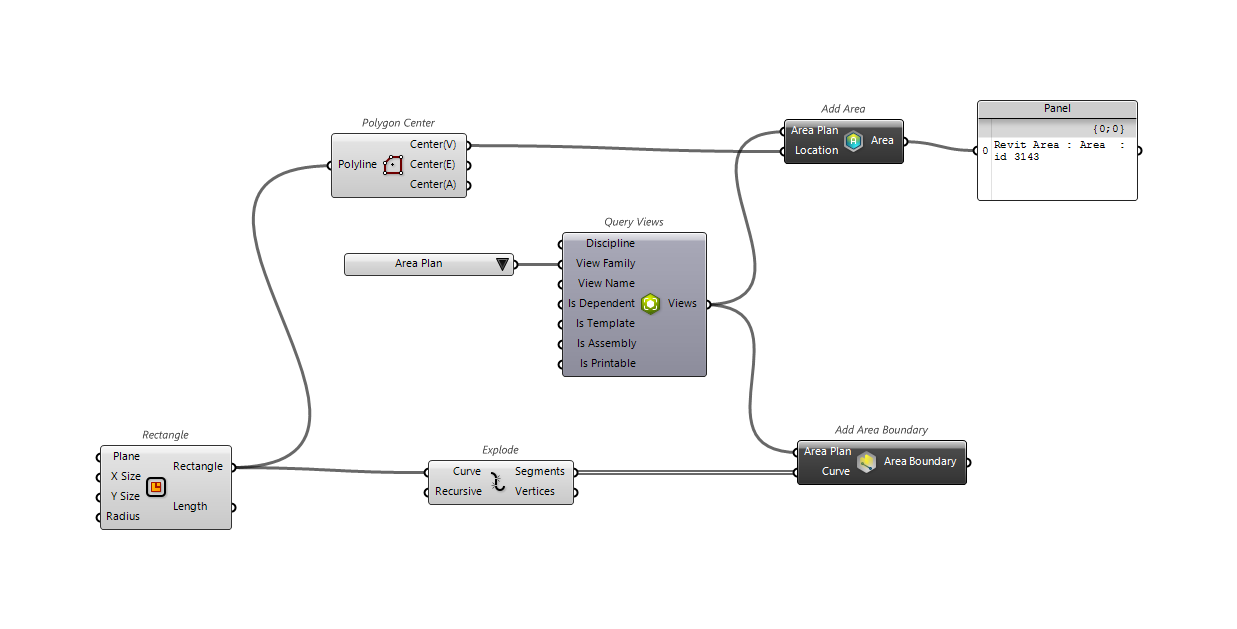

Add Areas
Use the
Add Area+ v1.7
to add Areas to Views.

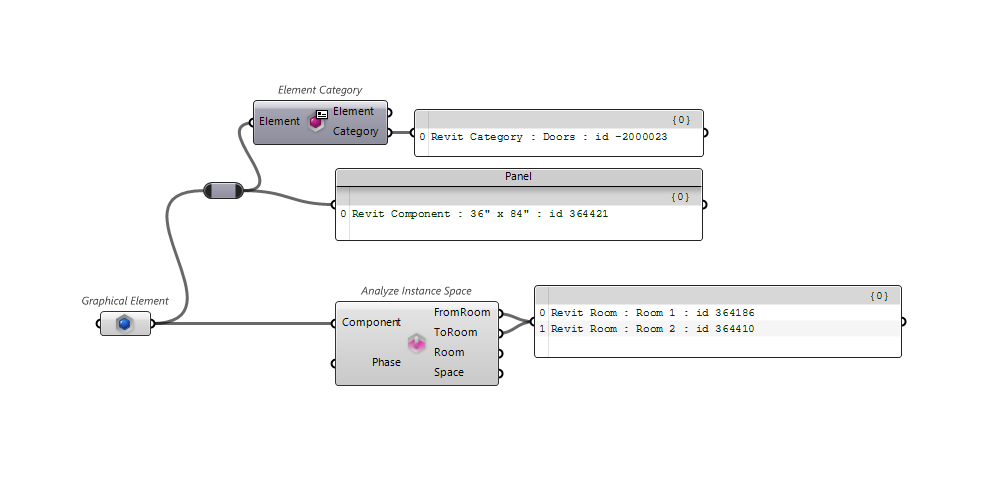

Analyze Instance Space
When the Revit option to Room Calculation Point is enabled in a Family (such as doors) the
Component Neighbours+ v1.0
component returns the associated Spatial information.

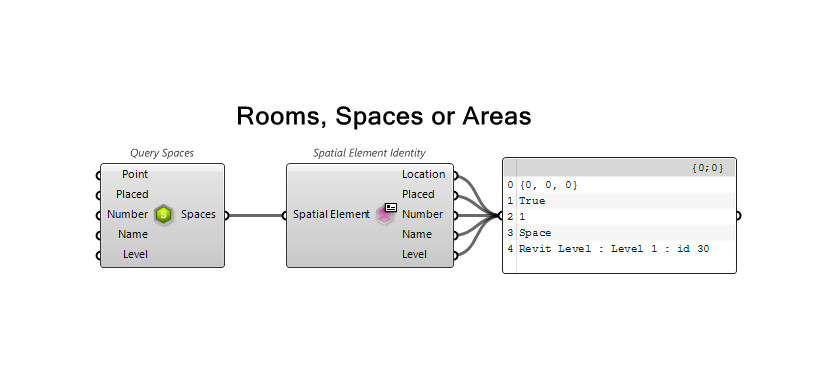

Spatial Element Identity
Get Spatial Element Properties with the
Spatial Element Identity+ v1.9
component.

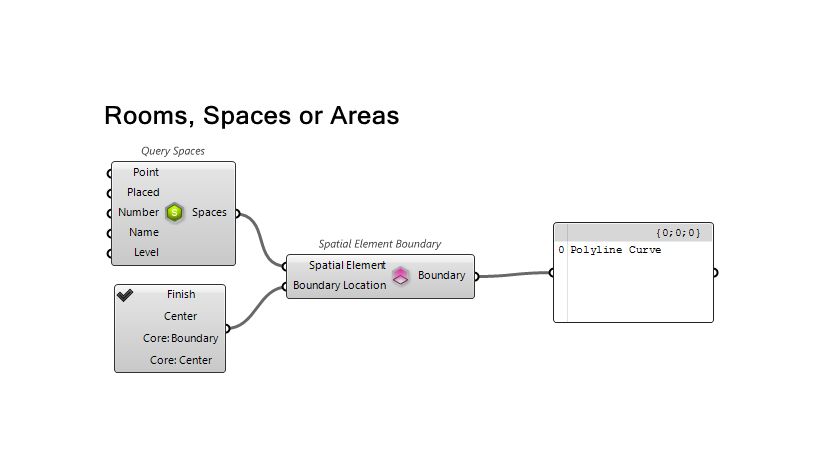

Spatial Element Boundary
Get Spatial Element Boundary based on its Location Property with the
Spatial Element Boundary+ v1.7
component.

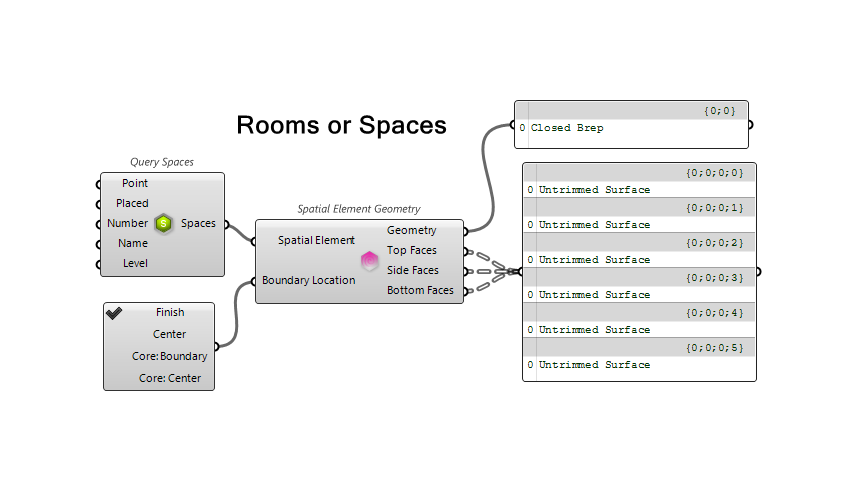

Spatial Element Geometry
Get Spatial Element Geometry with the
Spatial Element Geometry+ v1.7
component.
