Match Curve
00000000-9daa-4391-ae68-40931a0974bd

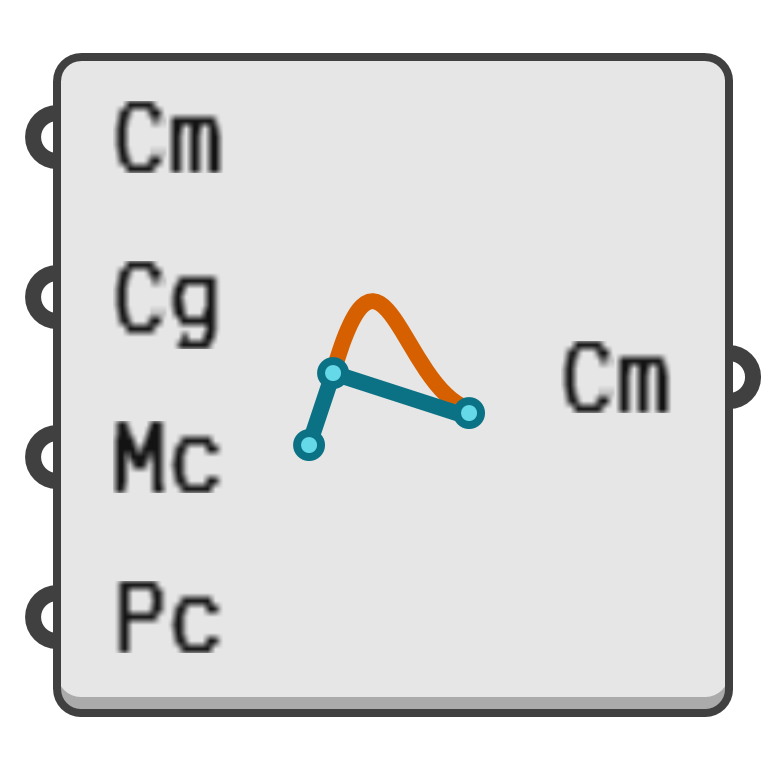

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Modify the end of one curve until it matches the position, tangency, or curvature of another.

Input parameters:

  1. Cm → Curve to modify.
  2. Cg → Guide curve for matching.
  3. Mc → Desired continuity at matching end.
    • 0 → Position
    • 1 → Tangency
    • 2 → Curvature
    • 3 → G3
    • 4 → G4
  4. Pc → Level of continuity to preserve at opposite end.
    • 0 → None
    • 1 → Position
    • 2 → Tangency
    • 3 → Curvature

Output parameters:

  1. Cm → Modified curve matching the guide curve.
