Bi-Arc Radius
00000000-fc19-4c4a-a260-feacb9343cc1
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

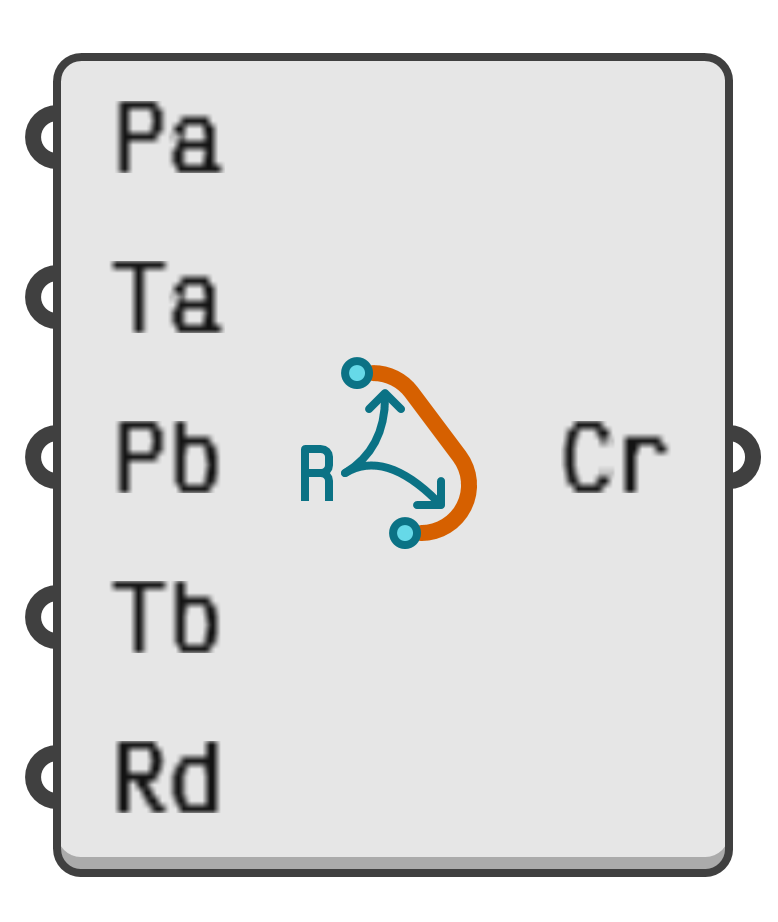

Create a arc-line-arc curve with given arc radii.
Input parameters:
- Pa → Bi-arc start point.
- Ta → Bi-arc start tangent.
- Pb → Bi-arc end point.
- Tb → Bi-arc end tangent.
- Rd → Arc radii.
Output parameters:
- Cr → Curve consisting of two arcs and a line segment, or a subset of the three.
