Fair Curve
00000000-e0d5-4d30-ae93-13ea0b27facb

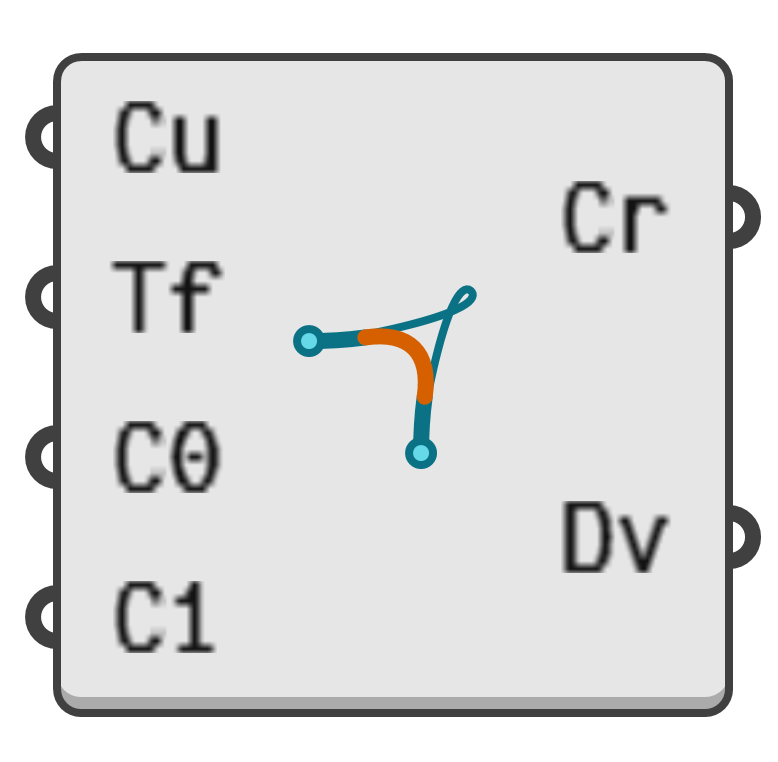

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Fair a curve by removing high curvature areas while keeping the global shape as close to the original as possible.

Input parameters:

  1. Cu → Curve to rebuild.
  2. Tf → Fairing tolerance as a measure of absolute deviation.
  3. C0 → Clamping constraint at the start of the curve.
    • 0 → Position
    • 1 → Tangency
    • 2 → Curvature
    • 3 → G3
    • 4 → G4
  4. C1 → Clamping constraint at the end of the curve.
    • 0 → Position
    • 1 → Tangency
    • 2 → Curvature
    • 3 → G3
    • 4 → G4

Output parameters:

  1. Cr → Rebuilt curve.
  2. Dv → Maximum deviation between the original and the rebuilt curve.
