Curve Discontinuities
00000000-c45d-4461-b414-9fae6d63d5e3

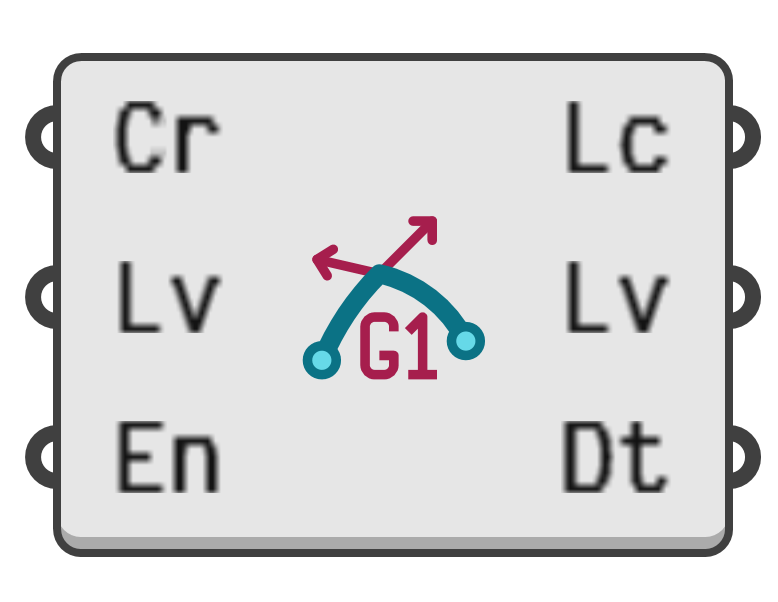

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Find the discontinuities along a curve.

Input parameters:

  1. Cr → Curve to analyse.
  2. Lv → Highest level of discontinuity to report.
    • 0 → G0 Position
    • 1 → G1 Tangency
    • 2 → G2 Curvature
    • 3 → G3 Jerk
    • 4 → G4 Yank
    • 5 → G5+ Smooth
    • 6 → G∞ Infinite
  3. En → Include the ends of open curves.
    •  True → Include
    • False → Exclude

Output parameters:

  1. Lc → Loci of all curve discontinuities.
  2. Lv → Level of discontinuity at each locus.
    • 0 → G0 Position
    • 1 → G1 Tangency
    • 2 → G2 Curvature
    • 3 → G3 Jerk
    • 4 → G4 Yank
    • 5 → G5+ Smooth
    • 6 → G∞ Infinite
  3. Dt → Text dots at all discontinuities.
