Blend Curve Custom
00000000-a6b0-4223-a2b5-0ab4e35e59dd

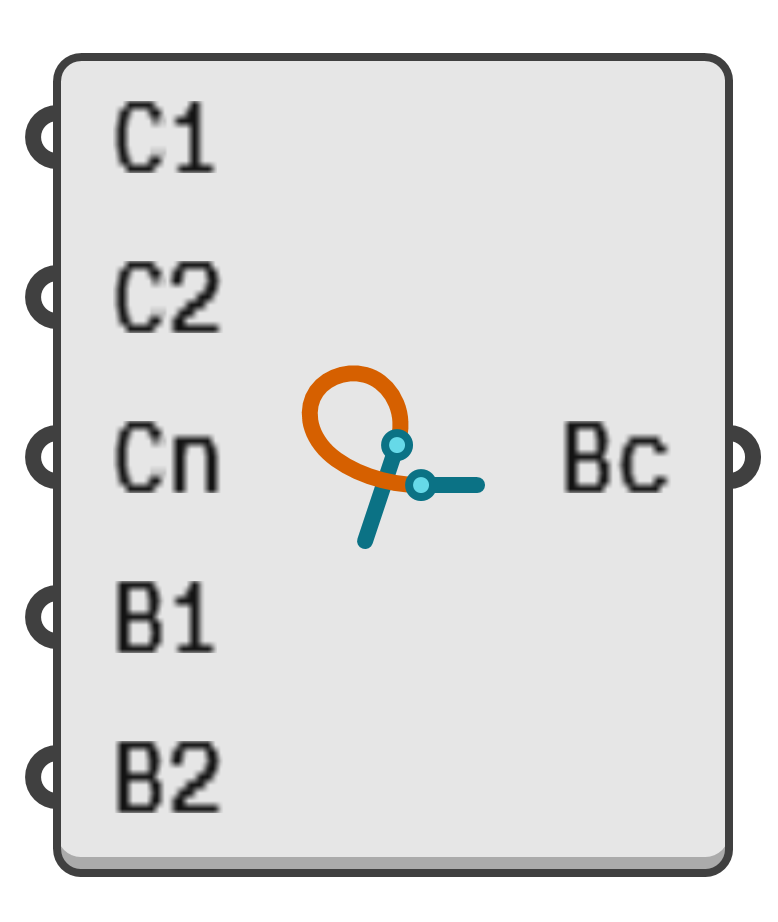

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a smooth blend curve connecting the end of one guide curve to the start of another, with custom bulge factors.

Input parameters:

  1. C1 → Guide curve for the start of the blend curve.
  2. C2 → Guide curve for the end of the blend curve.
  3. Cn → Continuity at the ends of the blend.
    • 0 → Position
    • 1 → Tangency
    • 2 → Curvature
    • 3 → G3
    • 4 → G4
  4. B1 → Bulge factor at the start of the blend.
  5. B2 → Bulge factor at the end of the blend.

Output parameters:

  1. Bc → Blend curve connecting both guide curves.
