Curvature Graph
00000000-d09e-470d-99dc-9c51d87901b0

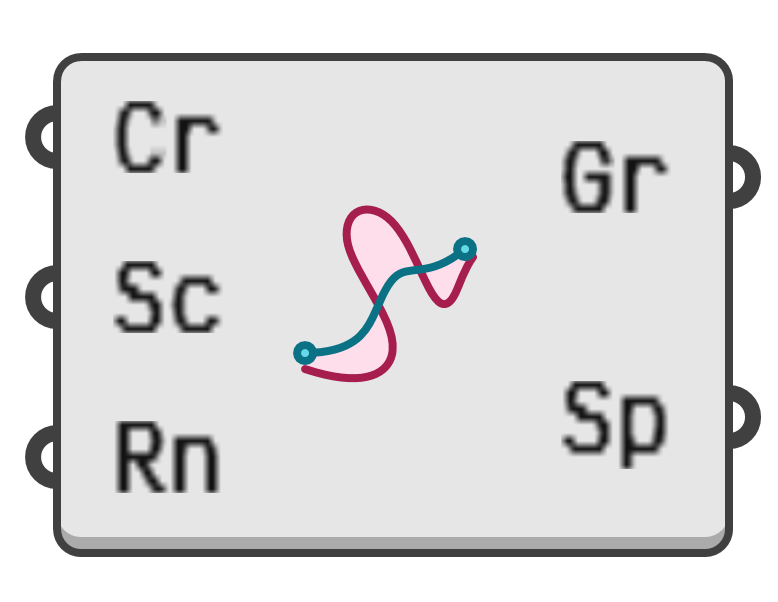

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Draw the curvature graph for a given curve.

Input parameters:

  1. Cr → Curve to analyze.
  2. Sc → Scaling factor.
  3. Rn → Optional range limit for graph. When specified, curvatures outside of the range will not be drawn.

Output parameters:

  1. Gr → Graph curve.
  2. Sp → Graph spokes.
