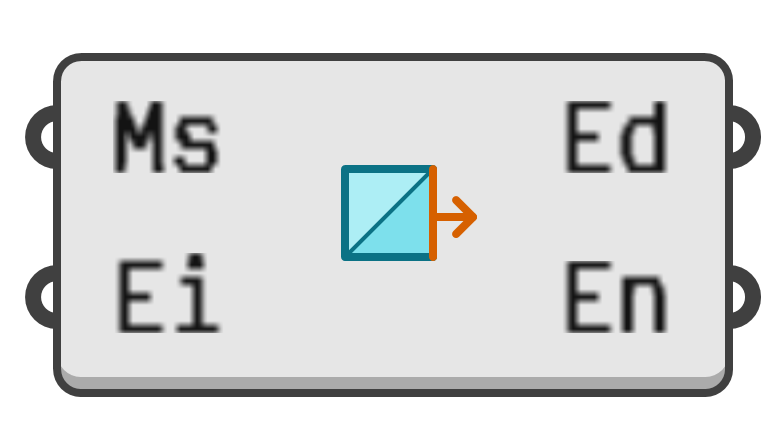

Mesh Edge
00000000-5e0e-4e71-8e8e-6a2ad0ebdb2b
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.
Extract the line and implied normal direction of a specific mesh edge.
Input parameters:
- Ms → Mesh to extract an edge line and normal from.
- Ei → Index of the mesh edge.
Output parameters:
- Ed → Edge line.
- En → Normal direction for the edge, as implied by adjacent vertex and facet normals.
