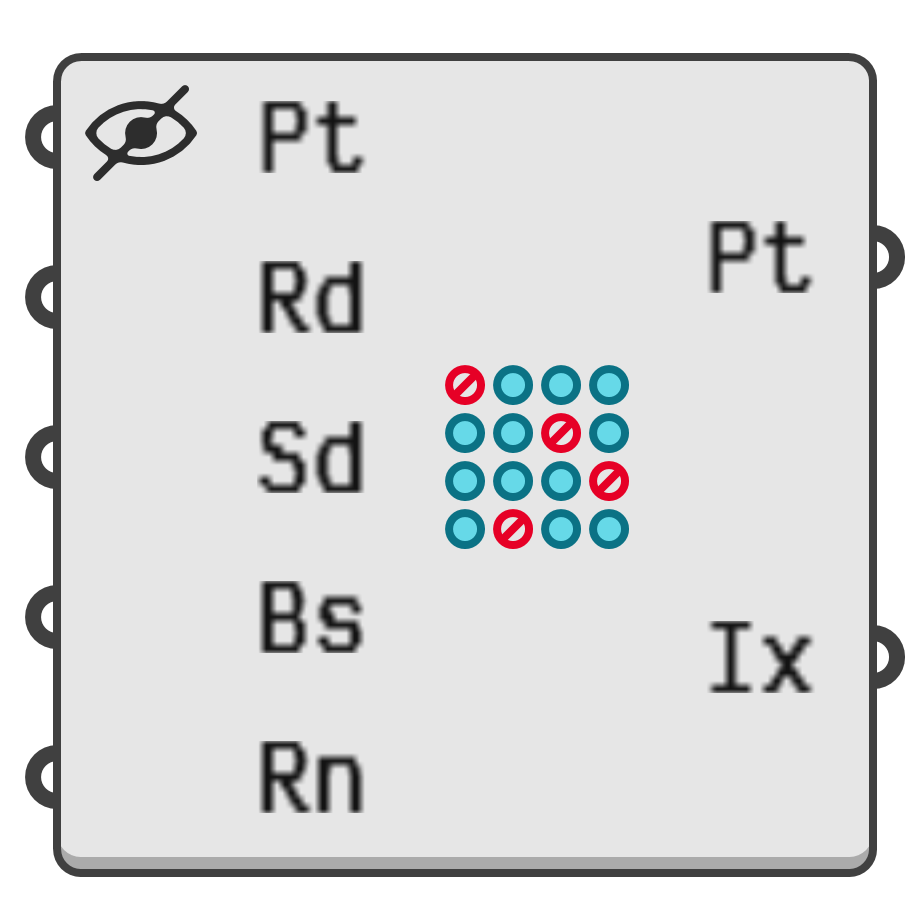

Decimate Points
00000000-4b9b-4321-a8de-5e436fc953d5
object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Remove points from a cloud based on proximity.

Input parameters:

  1. Pt → Point cloud to decimate.
  2. Rd → Crater radius around each remaining point.
  3. Sd → Optional seed point.
  4. Bs → Picking bias. -1.0 = closest, 0.0 = random, +1.0 = furthest. (this parameter is currently ignored)
  5. Rn → Random engine used for distribution.

Output parameters:

  1. Pt → Remaining points.
  2. Ix → Indices of all remaining points.
