Dissect Gradient
00000000-37ff-42ac-b5a8-1cdd55298452

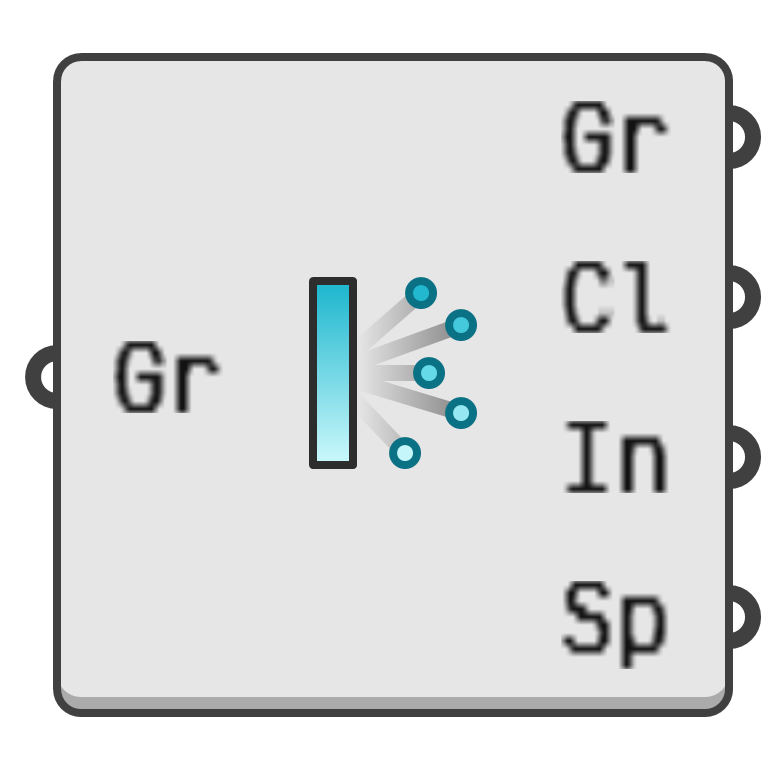

object preview

Extract the fundamental properties of a colour gradient, including its grip locations and colours, its interpolation scheme and the colour space within which it is defined.

This component is typically used alongside the Create From Grips component to modify one or more properties of an existing gradient.

1
2
3
4
5

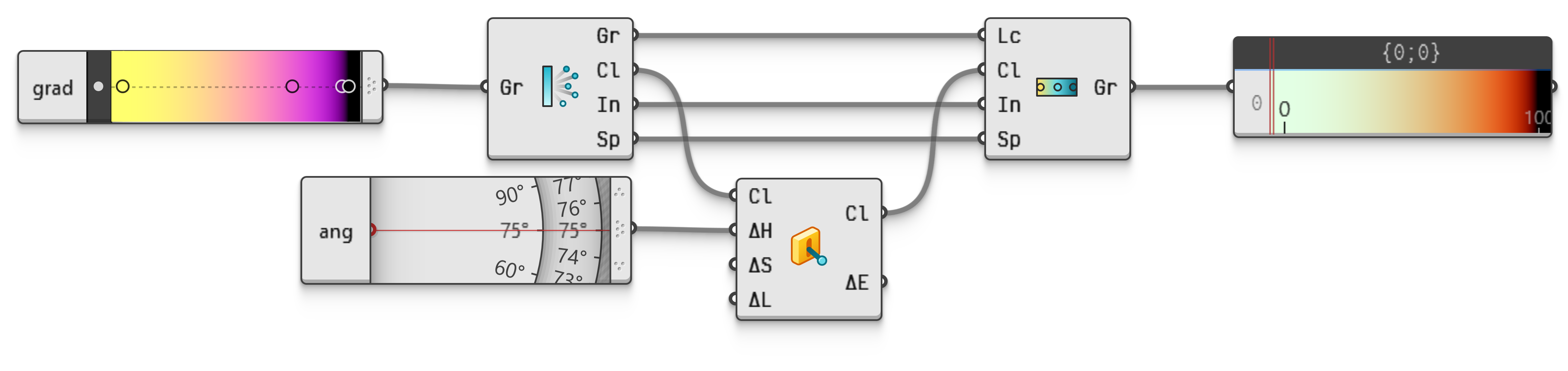

Example file DissectGradient.ghz.Interactive in Grasshopper 2
Change the hue of a gradient by first dissecting it into its fundamental properties, then moving the colour of the grips and finally reconstituting the modified grips with the original properties into a new gradient.
1
2
2
3
4

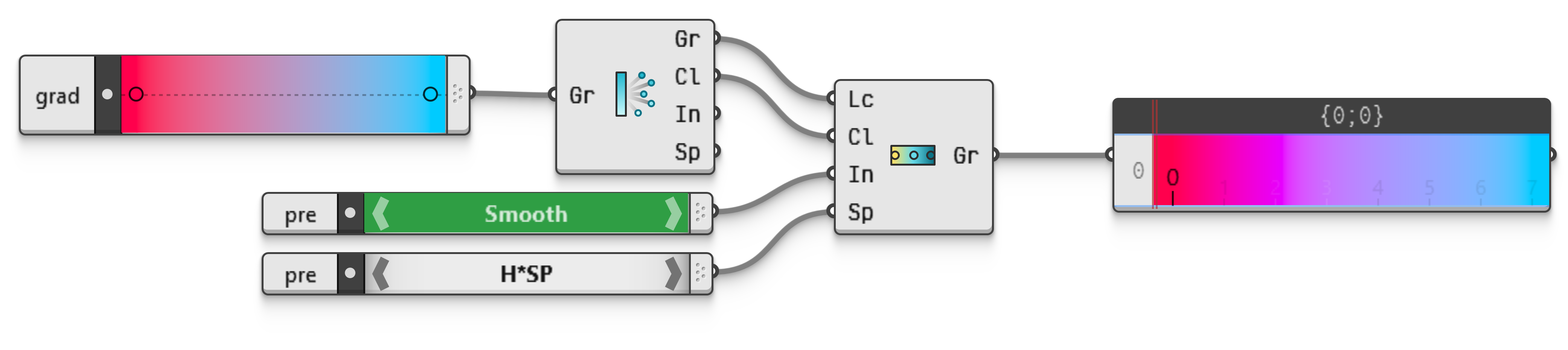

Example file GradientSpace.ghz.Interactive in Grasshopper 2
Change the interpolation scheme and colour space of a colour gradient.
