Connect Curves
00000000-1d51-4fc7-93b2-a1877f144aa1

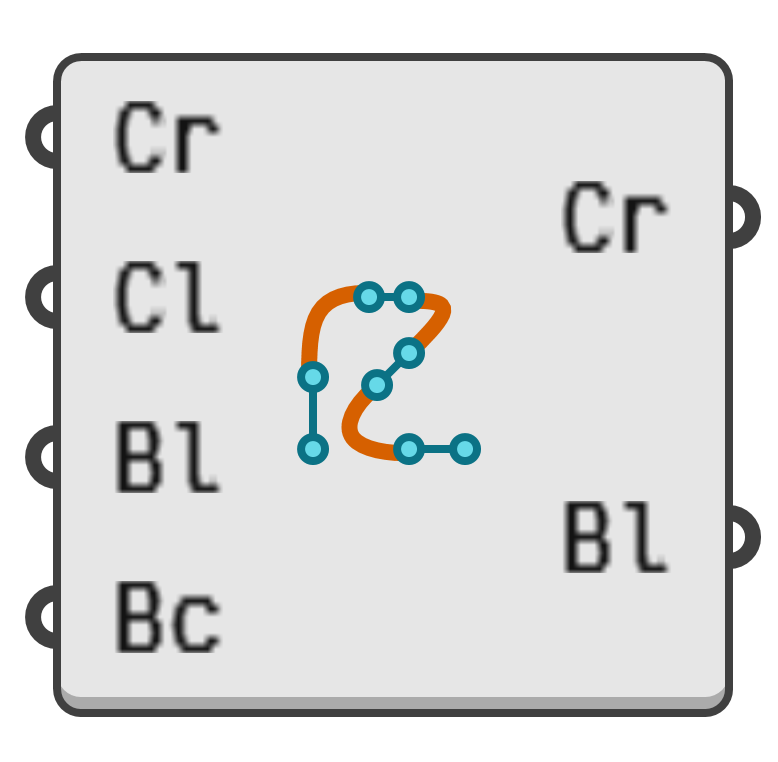

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create blend curves connecting a sequence of guide curves.

Input parameters:

  1. Cr → Sequence of guide curves to connect.
  2. Cl → Add a closing segment between the end of the last and the start of the first guide curve.
    •  True → Close
    • False → Open
  3. Bl → Bulging factor for tangent and curvature continuous blends.
  4. Bc → Blend continuity.
    • 0 → Position
    • 1 → Tangency
    • 2 → Curvature
    • 3 → G3
    • 4 → G4

Output parameters:

  1. Cr → Complete curve with all joined guide curves and blend curves.
  2. Bl → Individual blend curves.
