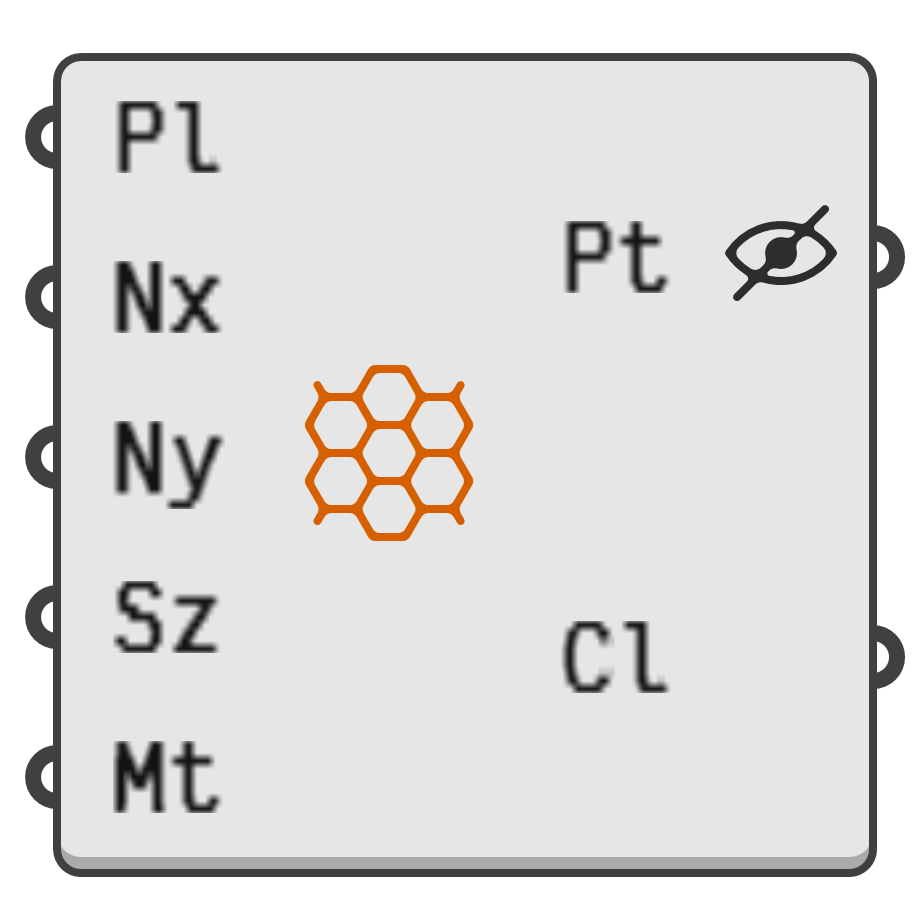

Generate a two-dimensional grid consisting of regular hexagons.

Input parameters:

1. Pl → Grid origin and orientation plane.
2. Nx → Integral number of cells in the grid X direction.
3. Ny → Integral number of cells in the grid Y direction.
4. Sz → Size value for hexagon cells.
5. Mt → Size metric to apply.
   • 0 → Edge
   • 1 → Apothem
   • 2 → Perimeter
   • 3 → Spacing
   • 4 → Area

Output parameters:

1. Pt → Points on the grid. Point structuring (flat, rows, or columns) can be modified from the component menu.
2. Cl → Grid cell outlines. Cell structuring (flat, rows, or columns) can be modified from the component menu.
