Convex Hull 3D
00000000-e1d6-400c-a0b7-a46287729490

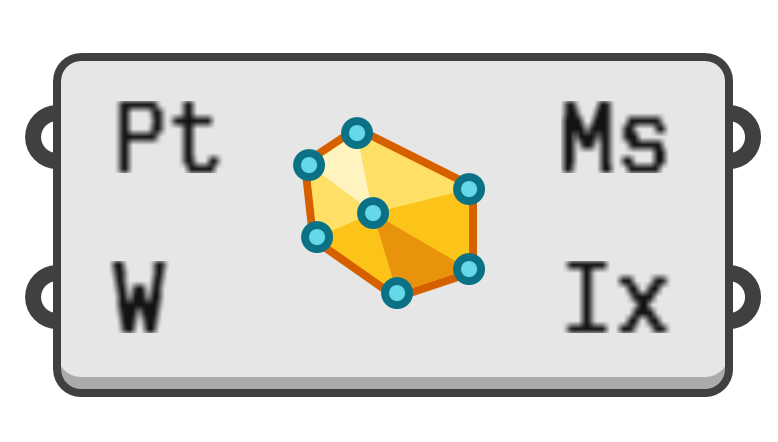

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a three-dimensional convex hull for a set of points.

Input parameters:

  1. Pt → Points to include in the hull.
  2. W → Whether the hull mesh shares vertices between facets (welded) or keeps each facet's vertices separate (unwelded).
    •  True → Welded
    • False → Unwelded

Output parameters:

  1. Ms → Mesh representing the convex hull.
  2. Ix → Indices of the input points used as vertices on the hull.
