Mesh Contours
00000000-d7f0-4452-9984-449219b5f84c

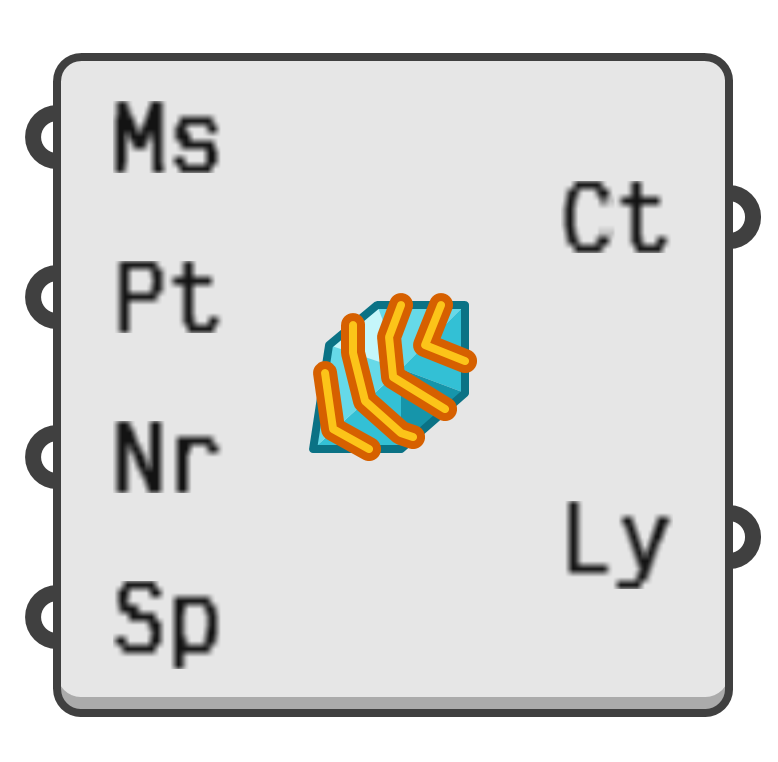

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a set of equally spaced mesh contours.

Input parameters:

  1. Ms → Mesh to contour.
  2. Pt → Contour base point.
  3. Nr → Contour slice normal direction.
  4. Sp → Spacing between contour layers.

Output parameters:

  1. Ct → Contour polylines, sorted by layer.
  2. Ly → Layer, i.e. contour section offset, given as an integer. Layer zero is the section through the base point.
