Mesh Clash
00000000-c906-401c-8898-c0bab8f7ec41

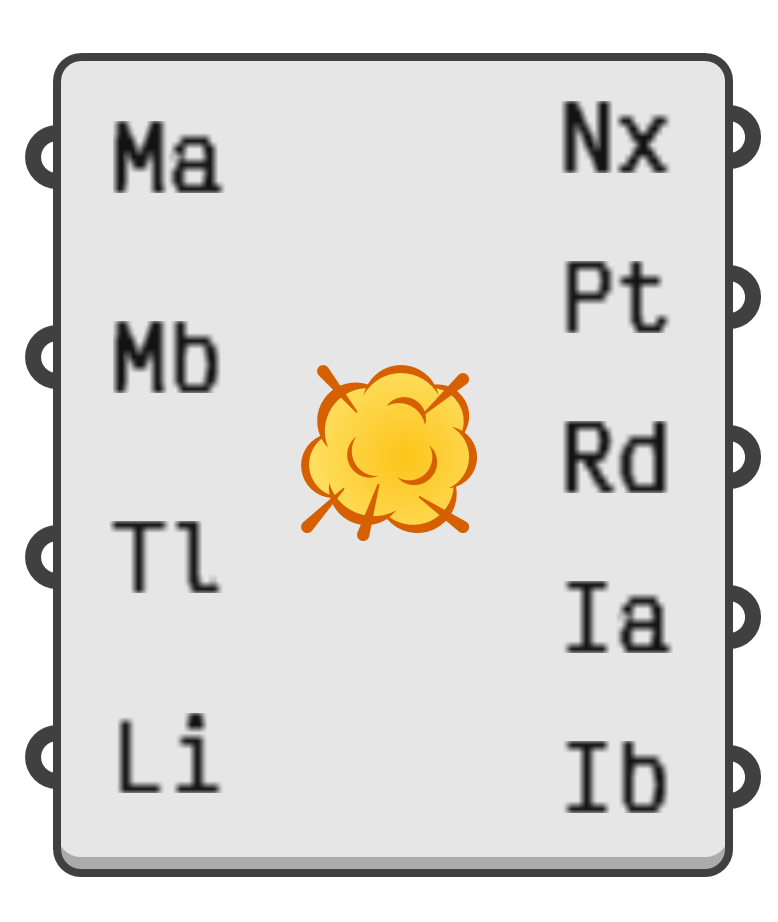

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Compute a clash analysis between two sets of meshes.

Input parameters:

  1. Ma → First set of meshes.
  2. Mb → Second set of meshes.
  3. Tl → Optional distance tolerance for clash detection. If omitted, the Absolute Tolerance Pin is used as a fallback.
  4. Li → Maximum number of clashes to search for. If omitted, all clashes within the tolerance will be found.

Output parameters:

  1. Nx → Number of clashes found.
  2. Pt → Clash intersection points.
  3. Rd → Clash radii at each intersection point.
  4. Ia → Index of clashing mesh from the first set.
  5. Ib → Index of clashing mesh from the second set.
