Sticker Surface
00000000-c8aa-4e2f-a884-8ca19e9cfbc1

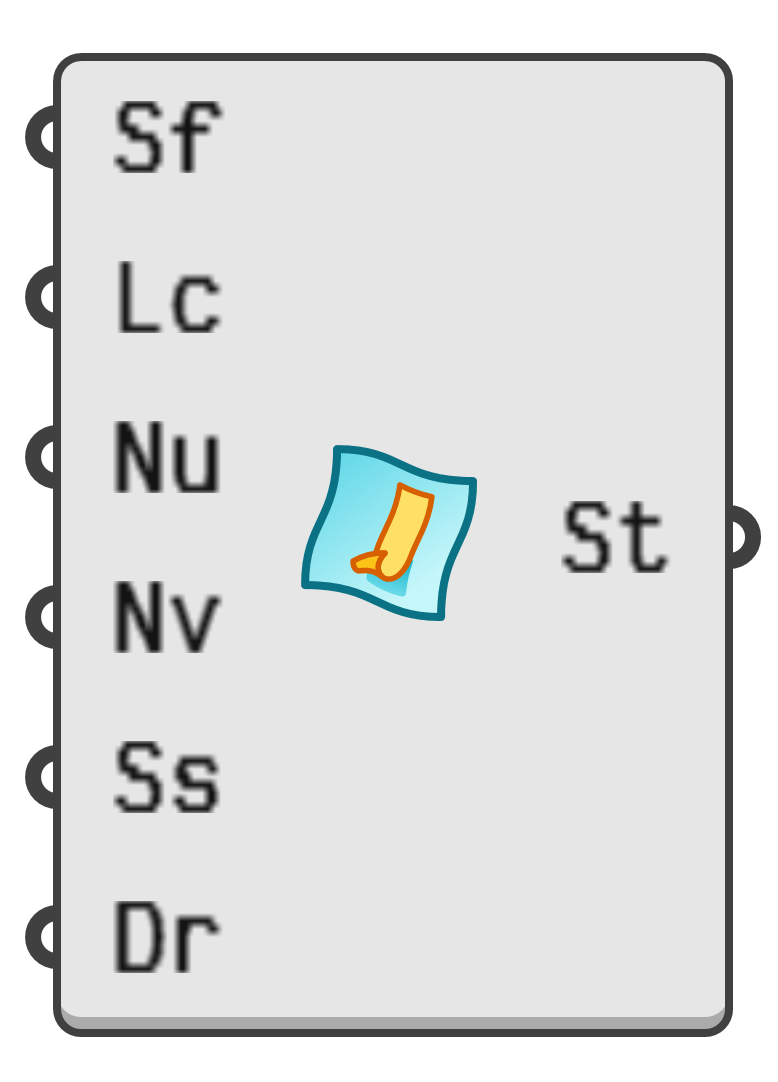

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Stick an elastic rectangular patch to another surface.

Input parameters:

  1. Sf → Target surface.
  2. Lc → Locus on target surface for centre of sticker.
  3. Nu → Number of samples along the target surface U direction.
  4. Nv → Number of samples along the target surface V direction.
  5. Ss → Step size between adjacent samples.
  6. Dr → Primary direction vector or rotational angle with respect to the target surface U direction.

Output parameters:

  1. St → Sticker surface.
