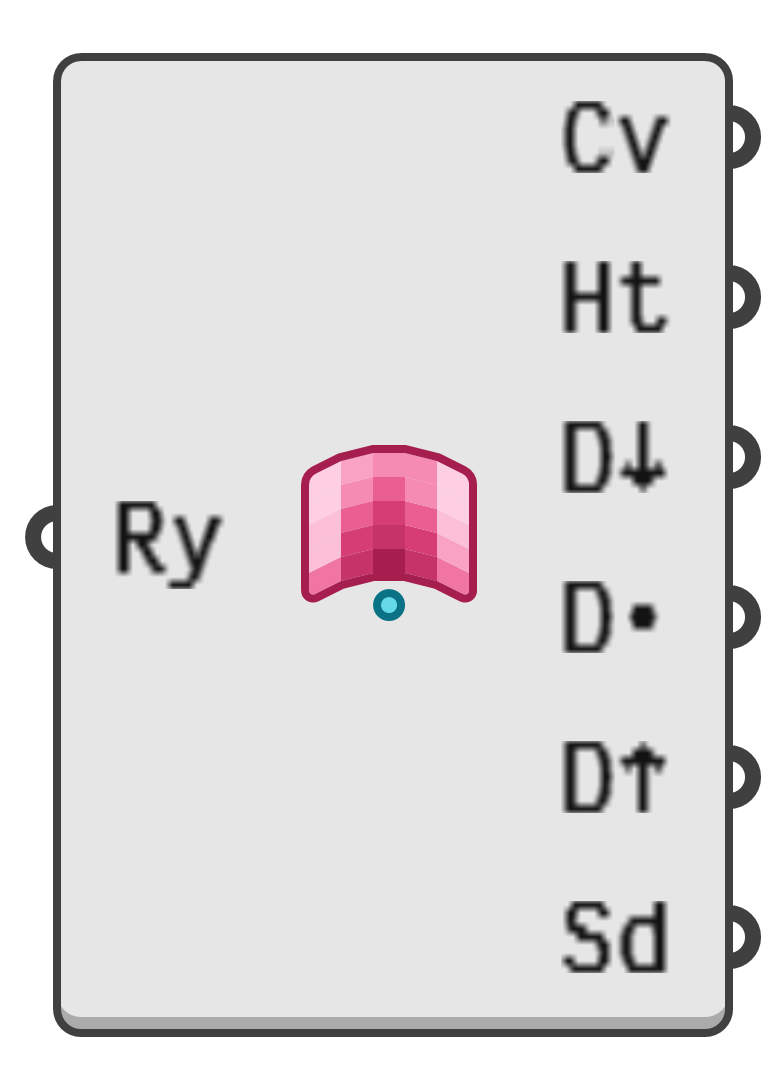

Isovist Coverage
00000000-c0e2-4a18-8b3c-7d4f9a6e15b0
object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Compute coverage and visibility statistics for a collection of isovist rays.

Input parameters:

  1. Ry → Isovist rays. Use the Rays output of an Isovist 2D or Isovist 3D component.

Output parameters:

  1. Cv → Fraction of the original sampling dome occupied by rays that hit an obstacle.
  2. Ht → Number of rays that hit an obstacle.
  3. D↓ → Smallest visible distance among hit rays, or zero if there were no hits.
  4. D• → Average visible distance among hit rays, or zero if there were no hits.
  5. D↑ → Largest visible distance among hit rays, or zero if there were no hits.
  6. Sd → Standard deviation of visible distance among hit rays, or zero if there were no hits.
