Box Property
00000000-b8d3-41ef-895f-68fbb2a59923

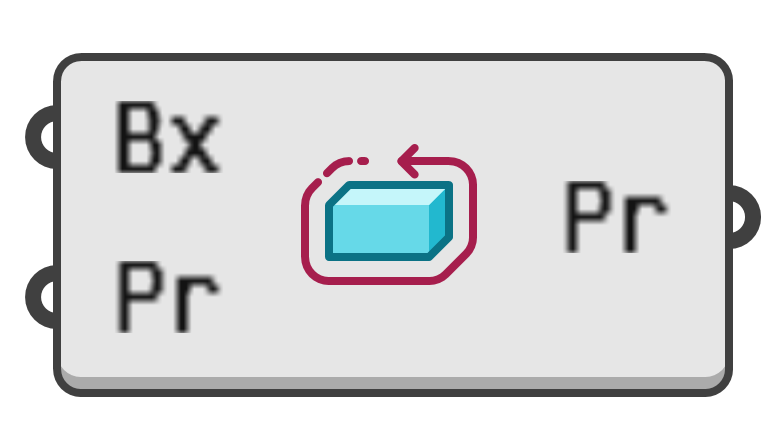

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Compute a requested property of a box, e.g. area, centroid, or degeneracy.

Input parameters:

  1. Bx → Box to measure.
  2. Pr → Property to measure.
    •  10 → Plane
    •  11 → X Interval
    •  12 → Y Interval
    •  13 → Z Interval
    •  20 → Diagonal
    •  21 → Centroid
    •  22 → Lowest Corner
    •  23 → Highest Corner
    •  40 → Width
    •  41 → Depth
    •  42 → Height
    •  43 → Perimeter
    • 100 → Area
    • 101 → Volume
    • 102 → Smallest Size
    • 103 → Biggest Size
    • 104 → Invergency
    • 105 → Degeneracy

Output parameters:

  1. Pr → Requested box property. Could be a boolean, a number, a point, a line, or whatever the type of the requested property is.
