ComponentAuto-generatedIntersect
Surface-Line
00000000-b3a0-41fe-ba86-de42b04a6794

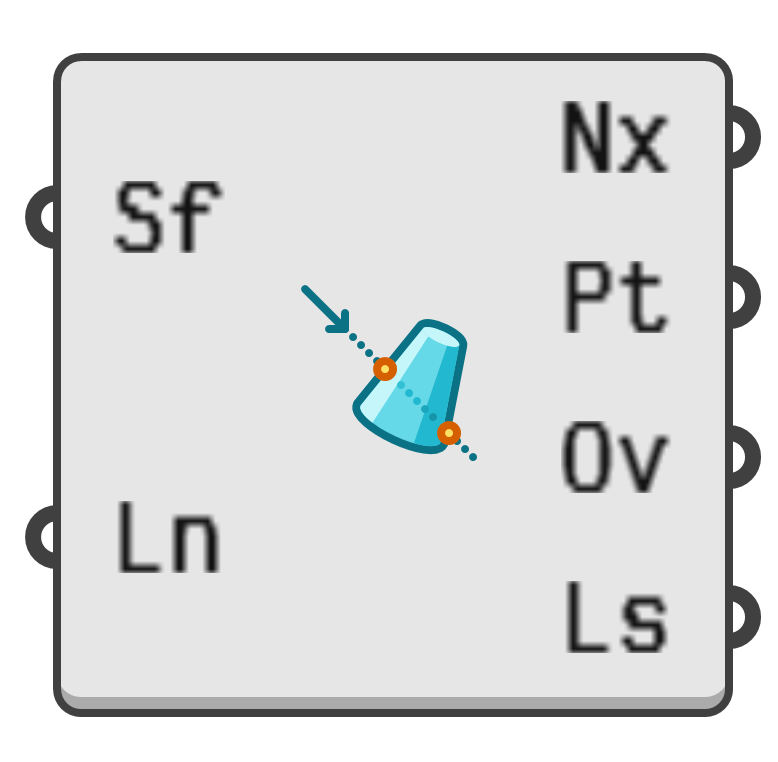

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Find the intersection points and overlaps between a surface and an infinite line.

Input parameters:

  1. Sf → Surface for intersection.
  2. Ln → Infinite line for intersection.

Output parameters:

  1. Nx → Number of intersections found.
  2. Pt → All intersection points.
  3. Ov → All overlap curves.
  4. Ls → Loci of all intersections on the surface.
