Mesh Torus
00000000-9ec2-4829-896b-b15bddb93168

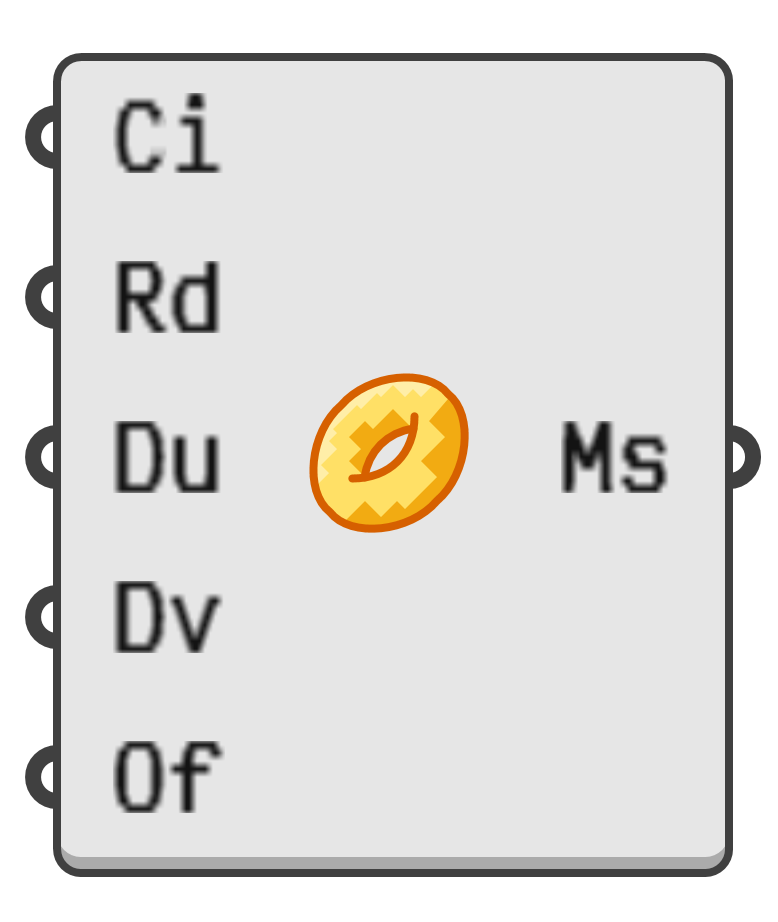

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a toroidal mesh.

Input parameters:

  1. Ci → Central circular rail.
  2. Rd → Radius of torus at each slice.
  3. Du → Number of mesh facets along the central rail.
  4. Dv → Number of mesh facets around the central rail.
  5. Of → Rotational offset of facets at the torus seam.

Output parameters:

  1. Ms → Toroidal mesh.
