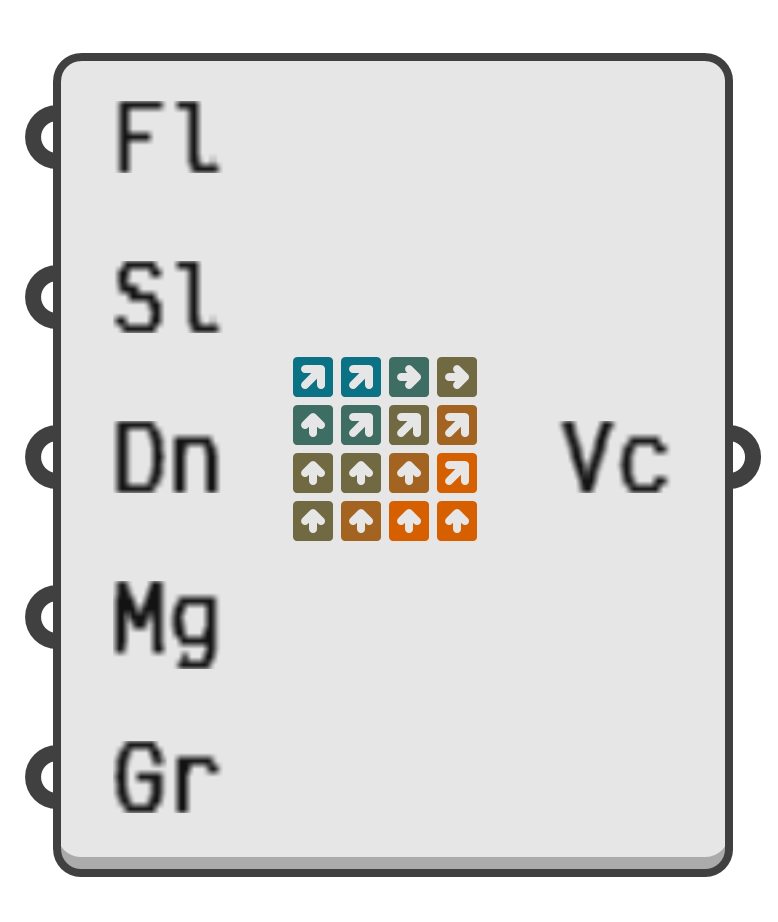

Field Vector Display
00000000-91f0-4b9a-a524-0a7589c1ae2b
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.
Display a sampling of field vectors within a rectangular boundary.
- Fl → Field to sample.
- Sl → Rectangular display boundary.
- Dn → Number of samples per slice.
- Mg → Optional function for converting field magnitudes to arrow lengths.
- Gr → Optional gradient to apply to vector lengths.
- Vc → Vector display.
