Edges From Linearity
00000000-77b7-42aa-9bd8-dbc718ebeb7e

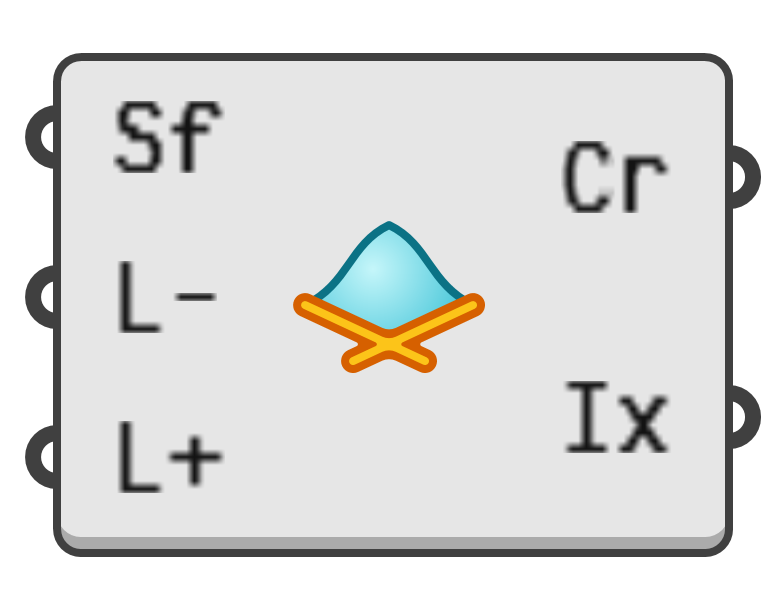

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Find all surface edges which are linear within tolerance.

Input parameters:

  1. Sf → Surface for edge search.
  2. L- → Lower deviation limit. When the lower limit exceeds the upper limit, linearities that fall between the limits are omitted instead.
  3. L+ → Upper deviation limit. When the upper limit is smaller than the lower limit, linearities that fall between the limits are omitted instead.

Output parameters:

  1. Cr → Found edge curves.
  2. Ix → Found edge indices.
