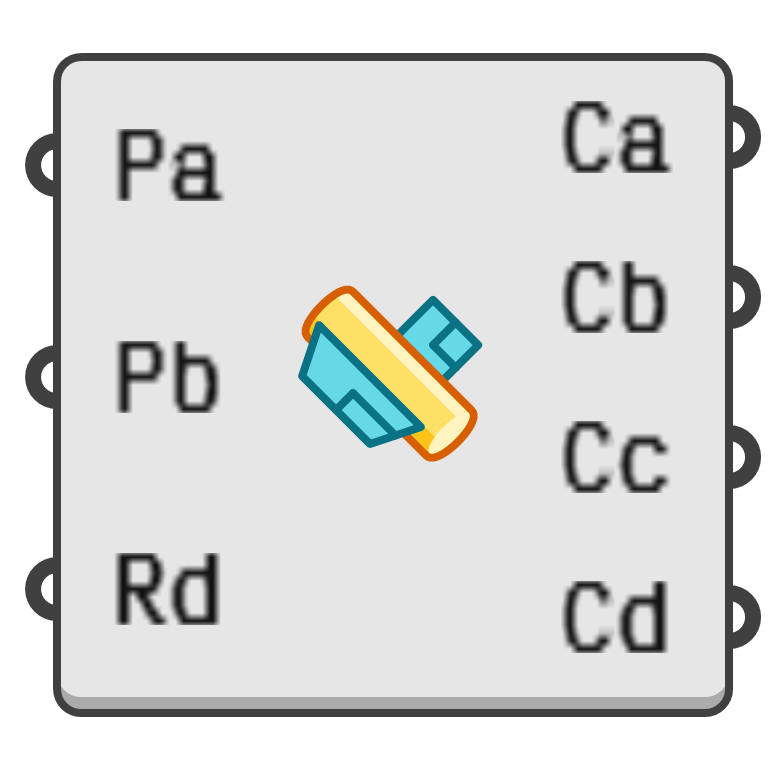

Tube Tangent To Planes
00000000-75a9-4d79-88a9-4eff9d8ff548
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.
Create a cylinder with a fixed radius tangent to two planes.
Input parameters:
- Pa → First tangent plane.
- Pb → Second tangent plane.
- Rd → Radius of cylinder.
Output parameters:
- Ca → Cylinder in the A+ and B+ region.
- Cb → Cylinder in the A+ and B- region.
- Cc → Cylinder in the A- and B+ region.
- Cd → Cylinder in the A- and B- region.
