ComponentAuto-generatedIntersect
Line Section
00000000-74e3-4a6d-b70c-579d8b314135

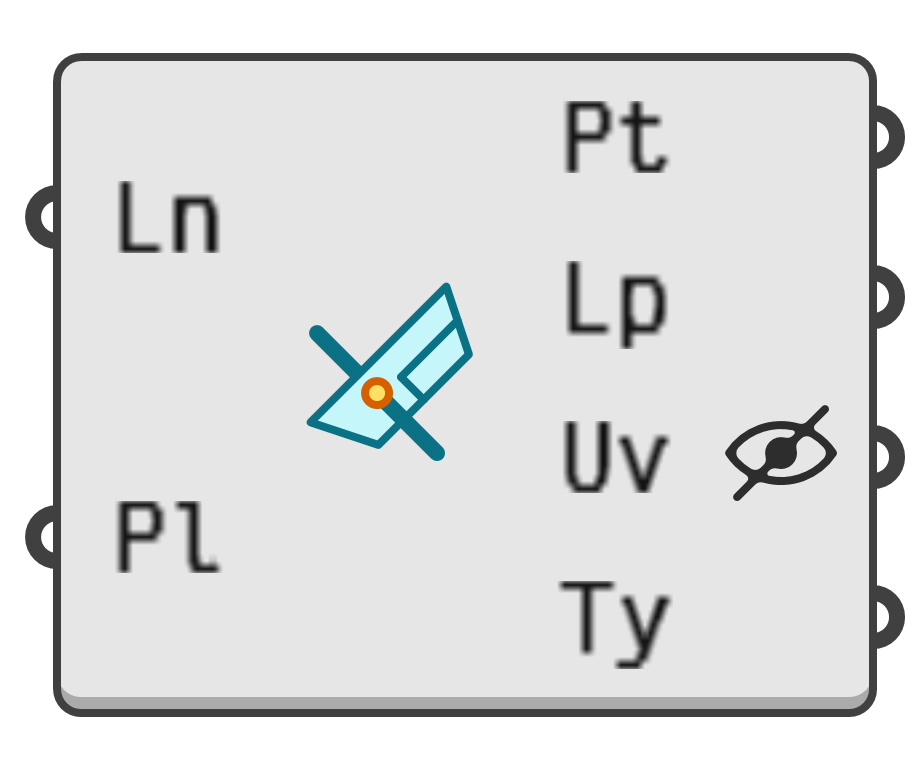

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Find the intersection of a line and a plane.

Input parameters:

  1. Ln → Line for intersection.
  2. Pl → Plane for intersection.

Output parameters:

  1. Pt → Intersection point.
  2. Lp → Parameter of the intersection on line.
  3. Uv → Parameter of the intersection on plane.
  4. Ty → Type of intersection.
    • 0 → None
    • 1 → Interior
    • 2 → Exterior
