Mesh From Grid
00000000-71b0-4ccf-bc4a-a5108314745c

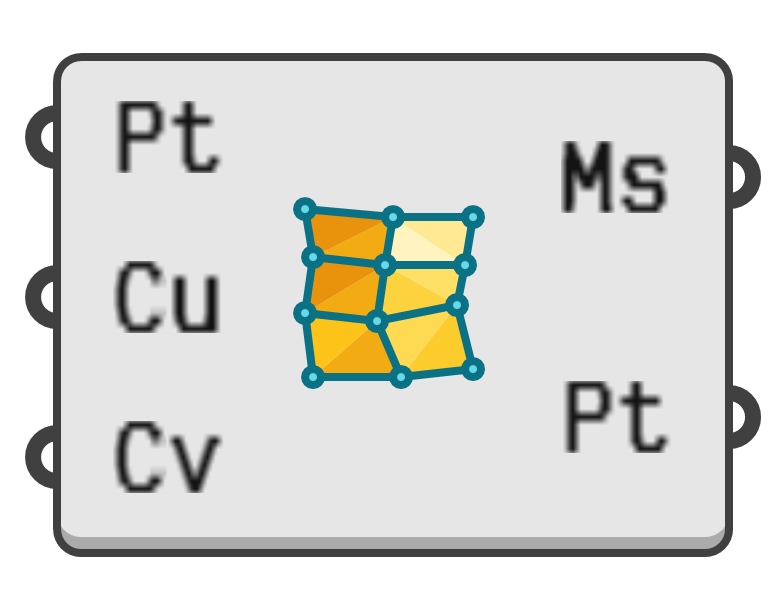

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a mesh out of multiple rows of points.

Input parameters:

  1. Pt → Sequential rows of points. When the number of points in a subsequent row changes, a new grid is started. When the penultimate integer in the tree path of a point list changes, this also signals the start of a new grid.
  2. Cu → Open or close the mesh in the U direction.
    •  True → Close
    • False → Open
  3. Cv → Open or close the mesh in the V direction.
    •  True → Close
    • False → Open

Output parameters:

  1. Ms → Mesh based on point rows.
  2. Pt → Ranges of paths that were used to create each mesh.
