Bi-Arc Balanced
00000000-60fd-4565-b4c7-d3f0735657ec

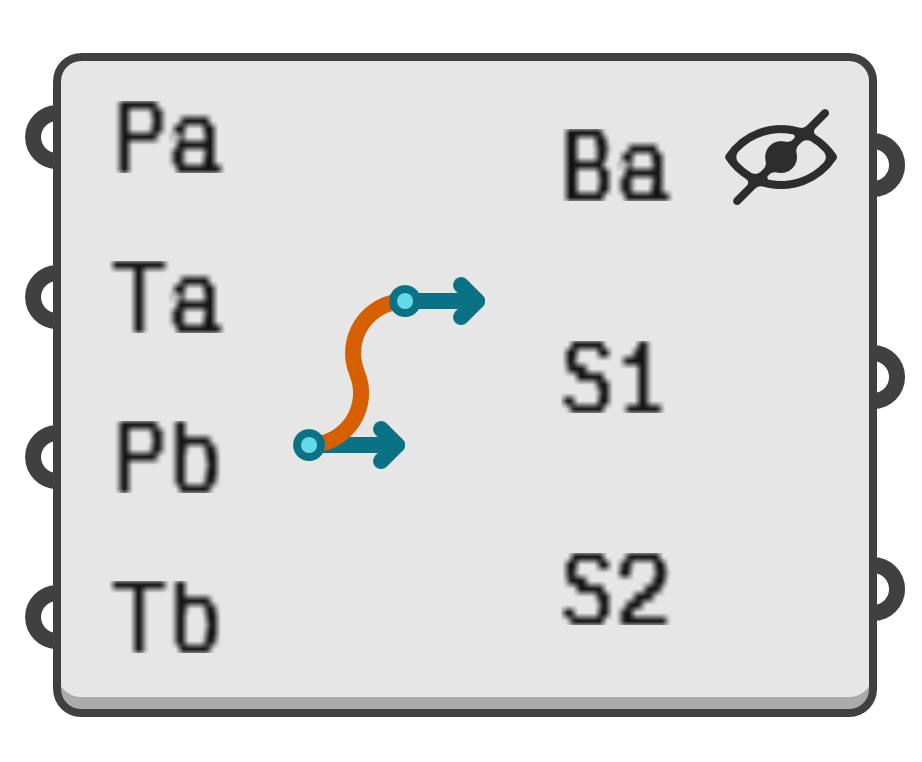

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a balanced bi-arc curve constrained by end points and tangents.

Input parameters:

  1. Pa → Bi-arc start point.
  2. Ta → Bi-arc start tangent.
  3. Pb → Bi-arc end point.
  4. Tb → Bi-arc end tangent.

Output parameters:

  1. Ba → Bi-arc defined by end points and tangents.
  2. S1 → First segment of bi-arc. Either null, a line, or an arc.
  3. S2 → Second segment of bi-arc. Either null, a line, or an arc.
