Curvature Display
00000000-5e17-4876-a833-e010b03506be

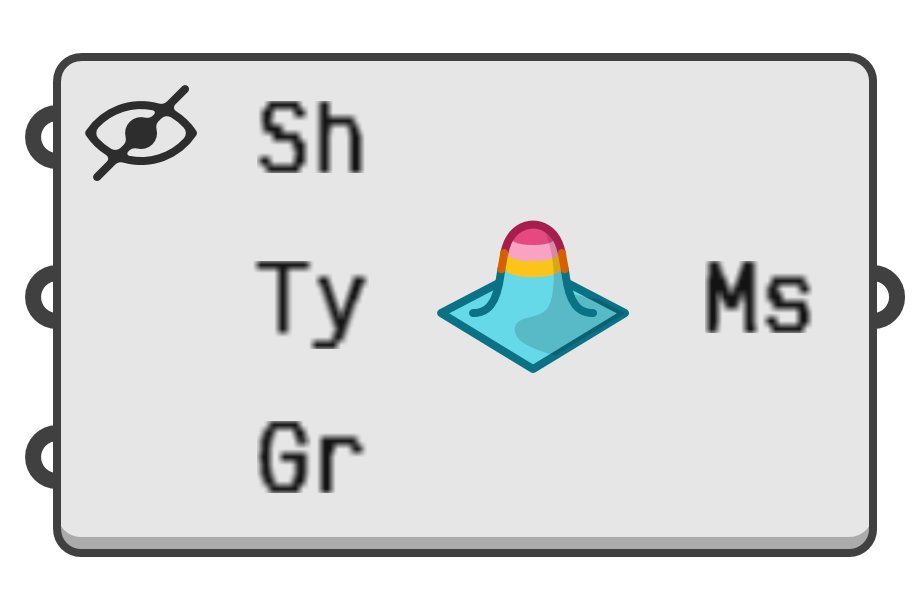

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Display the curvature of a surface.

Input parameters:

  1. Sh → Surface to analyse.
  2. Ty → Type of curvature to display.
    • 0 → Minimum
    • 1 → Maximum
    • 2 → Mean
    • 3 → Abs(Mean)
    • 4 → Gaussian
  3. Gr → Visualisation gradient.

Output parameters:

  1. Ms → Mesh with analysis colours.
