Rectangle Property
00000000-5e05-4649-b3ac-9f09d2faf529

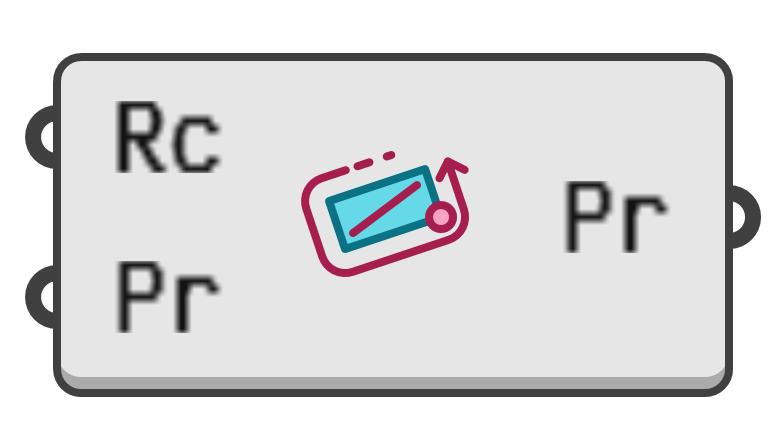

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Compute a given property of a rectangle.

Input parameters:

  1. Rc → Rectangle to measure.
  2. Pr → Property to measure.
    •  10 → Vertex A
    •  11 → Vertex B
    •  12 → Vertex C
    •  13 → Vertex D
    •  20 → Edge AB
    •  21 → Edge BC
    •  22 → Edge CD
    •  23 → Edge DA
    •  30 → Middle AB
    •  31 → Middle BC
    •  32 → Middle CD
    •  33 → Middle DA
    •  40 → Diagonal AC
    •  41 → Diagonal BD
    •  50 → Median Vertical
    •  51 → Median Horizontal
    •  60 → Width
    •  61 → Height
    •  62 → X Domain
    •  63 → Y Domain
    •  90 → Centre
    •  91 → Origin
    •  92 → Normal
    •  93 → Plane
    • 100 → Area
    • 101 → Perimeter
    • 102 → Ratio

Output parameters:

  1. Pr → Requested rectangle property. A boolean, a number, a point, a line, etc., according to the type of the requested property.
