Field Scalar Display
00000000-5cfe-4fc0-befa-1243af22edd4

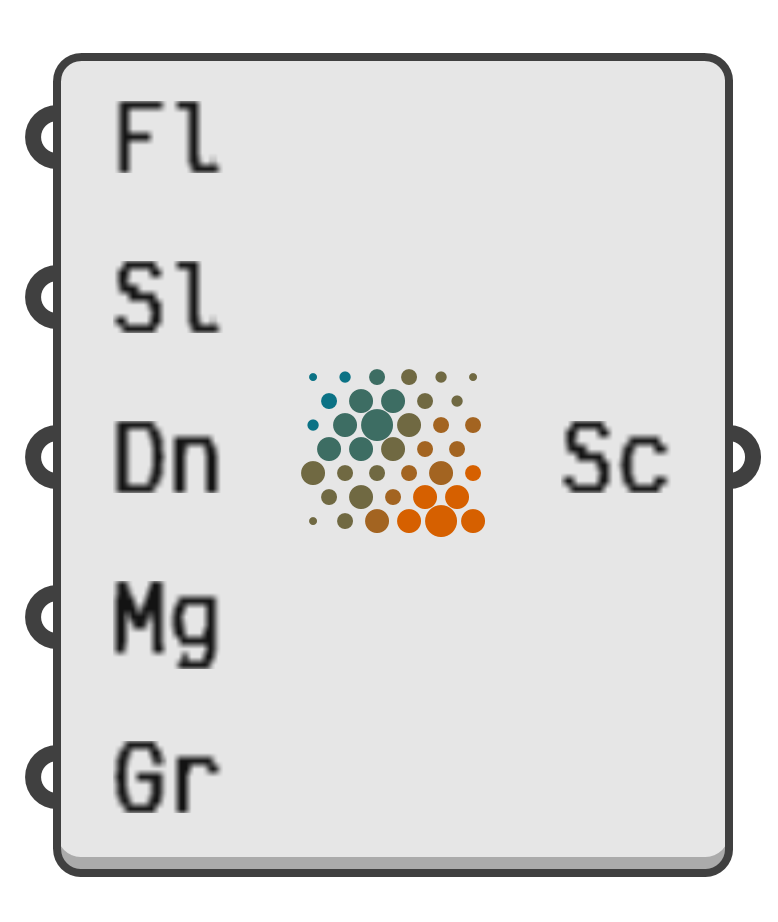

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Display a sampling of field values within a rectangular boundary.

Input parameters:

  1. Fl → Field to sample.
  2. Sl → Rectangular display boundary.
  3. Dn → Number of samples per slice.
  4. Mg → Optional function for converting field magnitudes to dot radii.
  5. Gr → Optional gradient to apply to scalar magnitude.

Output parameters:

  1. Sc → Scalar display.
