Divide Surface
00000000-506d-4f8c-8b37-587e793c4971

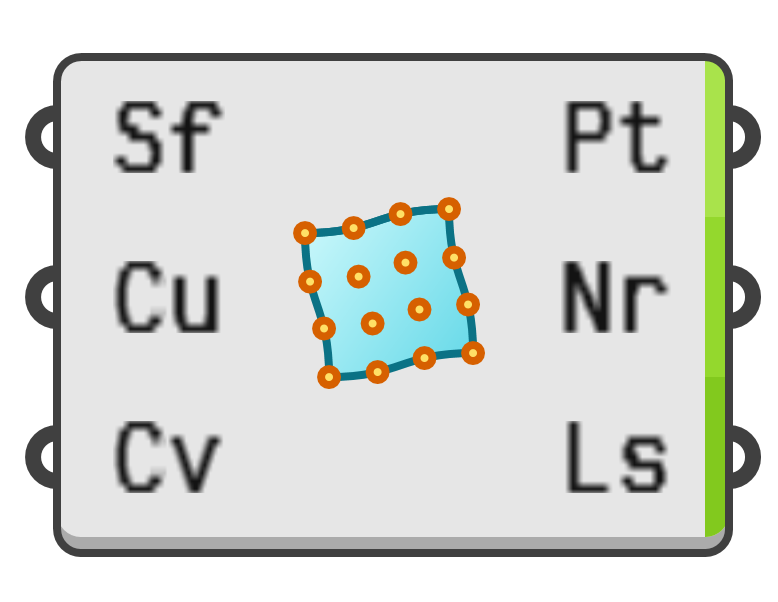

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Divide a surface into a grid of UV points.

Input parameters:

  1. Sf → Surface to divide.
  2. Cu → Number of divisions in the surface U direction.
  3. Cv → Number of divisions in the surface V direction.

Output parameters:

  1. Pt → Grid of points resulting from dividing the surface.
  2. Nr → Normal vectors at the grid points.
  3. Ls → Surface loci along U and V directions.
  4. Gf → Graph containing all points and their connections.
