Faces From Normal
00000000-4867-4df3-8511-0ec9dab3640b

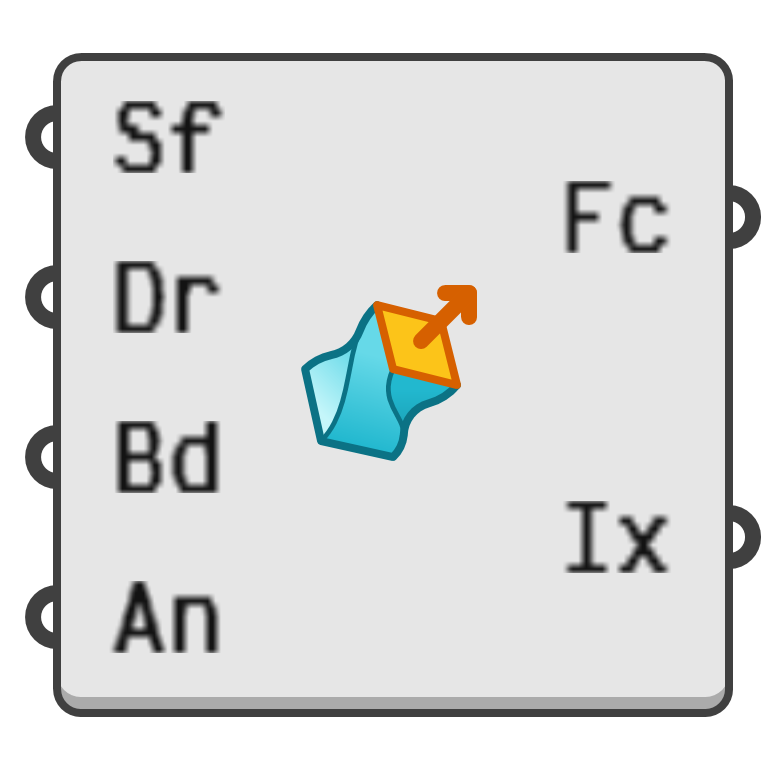

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Find all surface faces whose normal is parallel or anti-parallel with a given direction.

Input parameters:

  1. Sf → Surface for face search.
  2. Dr → Direction to compare to.
  3. Bd → If true, find both parallel and anti-parallel faces.
  4. An → Allowed angular deviation between the face normal and the given direction.

Output parameters:

  1. Fc → Found face surfaces.
  2. Ix → Found face indices.
