Stretch Deform
00000000-3922-41e6-88bb-3bb91d89c181

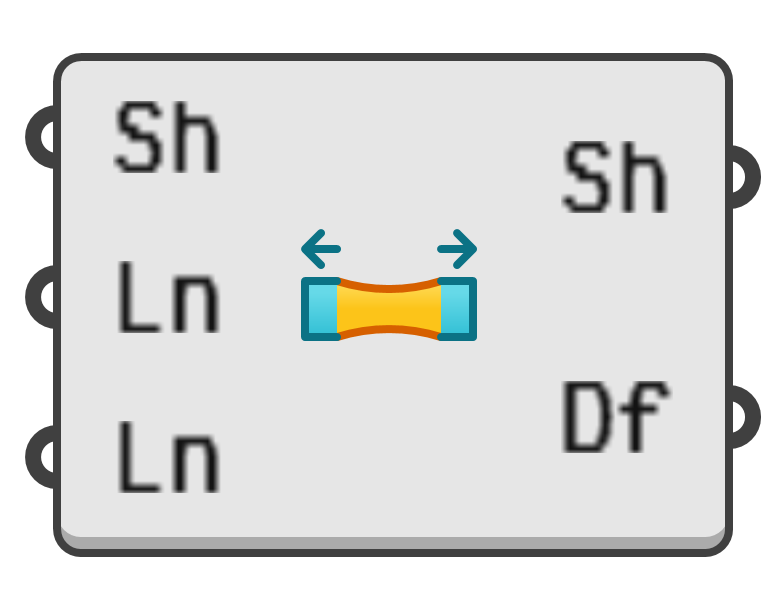

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a stretching deformation. If an input shape is provided, it will be deformed accordingly.

Input parameters:

  1. Sh → Optional shape to stretch.
  2. Ln → Line covering the region to be stretched.
  3. Ln → Length of stretched line, as measured from the fixed start.

Output parameters:

  1. Sh → Shape with applied deformation.
  2. Df → Stretching deformation.
