Tube From Axis
00000000-3716-4507-9928-edf22cff4250

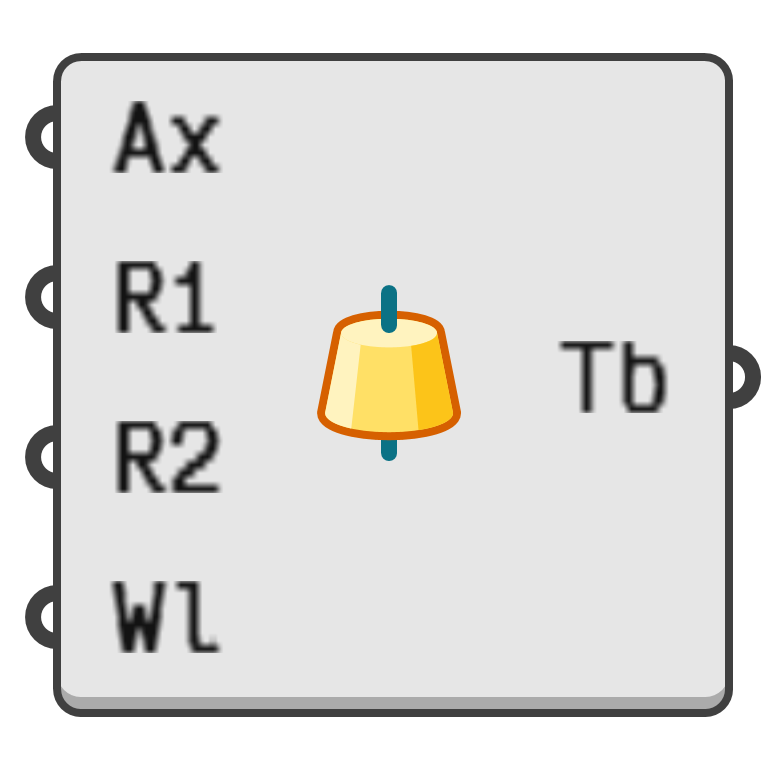

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a tube from an axis.

Input parameters:

  1. Ax → Central axis for tube.
  2. R1 → Radius of tube at axis start.
  3. R2 → Radius of tube at axis end.
  4. Wl → Thickness of the tube walls.

Output parameters:

  1. Tb → Tube defined by axis and radii.
