Curve Contours
00000000-2bc7-4e0e-9515-20e2c9a67688

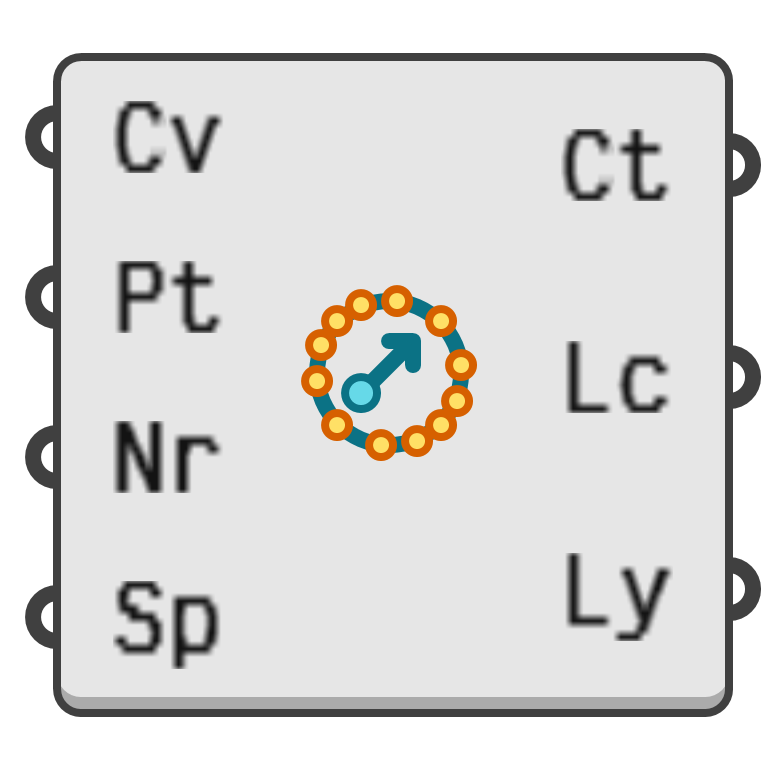

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a set of equally spaced curve contour points.

Input parameters:

  1. Cv → Curve to contour.
  2. Pt → Contour base point
  3. Nr → Contour slice normal direction.
  4. Sp → Spacing between contour layers.

Output parameters:

  1. Ct → Contour points, sorted by layer.
  2. Lc → Loci of contour points on the curve.
  3. Ly → Layer, i.e. contour section offset, given as an integer. Layer zero is the section through the base point.
