Edges From Direction
00000000-22ad-4f4d-be39-1e6d7cef96b0

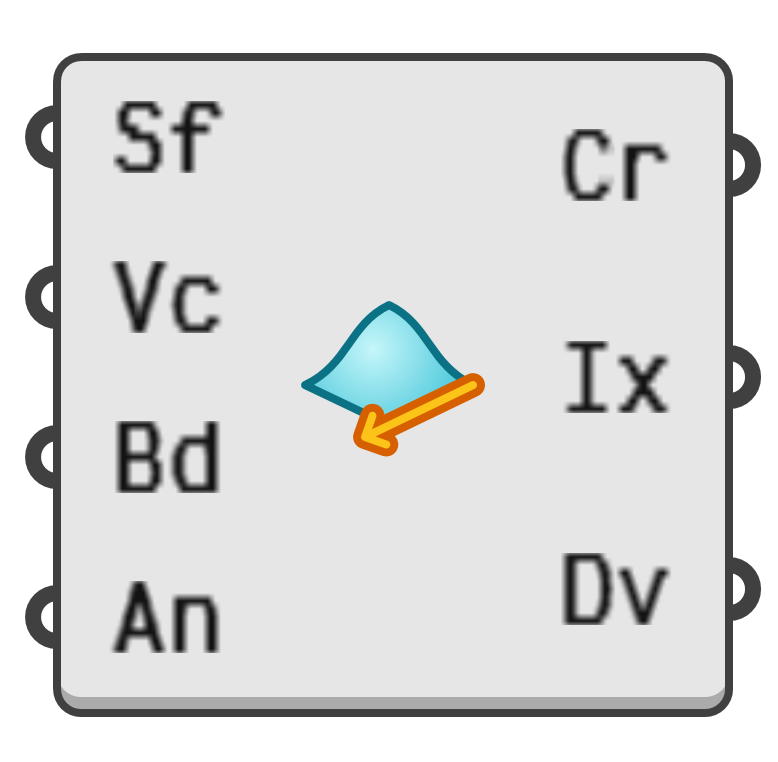

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Find all surface edges parallel or anti-parallel with a given direction.

Input parameters:

  1. Sf → Surface for edge search.
  2. Vc → Direction to match against.
  3. Bd → If true, find both parallel and anti-parallel edges.
  4. An → Angular tolerance.

Output parameters:

  1. Cr → Curves of found edges.
  2. Ix → Indices of found edges.
  3. Dv → Largest measured angular deviation between the edge and the given direction.
