ComponentAuto-generatedMesh
Mesh Facet
00000000-1d6f-45d3-b7d4-ee4e25f83f6e

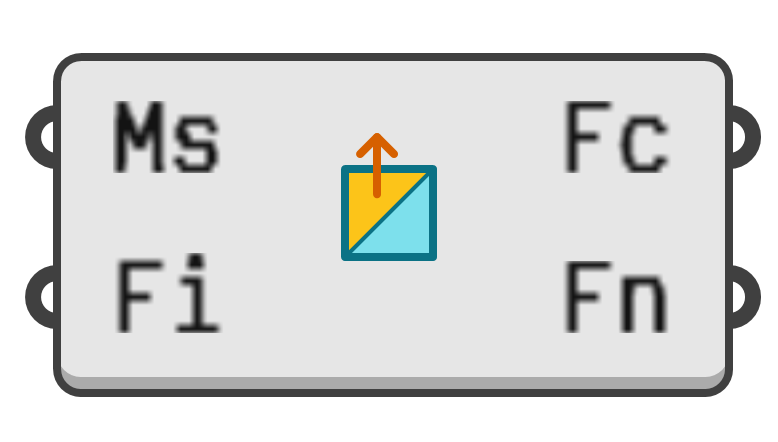

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Extract the corner indices and normal direction of a specific mesh facet.

Input parameters:

  1. Ms → Mesh for facet extraction.
  2. Fi → Index of mesh facet to extract.

Output parameters:

  1. Fc → Facet with corner indices.
  2. Fn → Normal direction of facet, if available.
