Ease Edges
00000000-104c-437f-a83c-aee691b05708

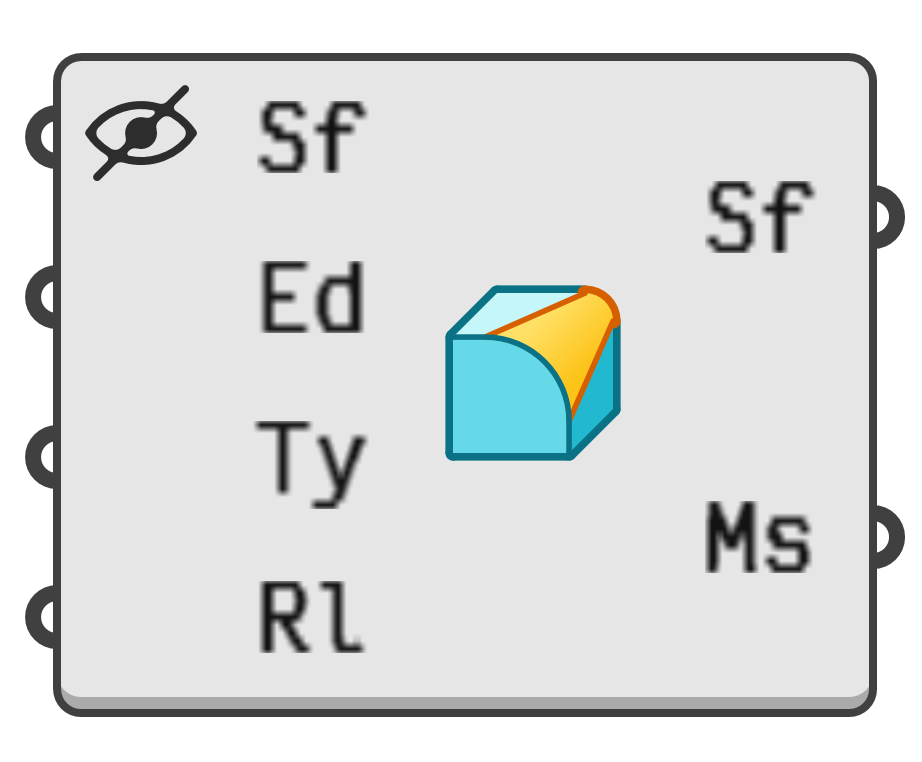

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Ease surface edges by filleting, blending or chamfering them with varying radii.

Input parameters:

  1. Sf → Surface with sharp edges to ease.
  2. Ed → Edge and radii descriptions. These can be generated with the 'Easing Radii' component.
  3. Ty → Easing cross-section geometry and corner behaviour.
    • 0 → Chamfer
    • 1 → Fillet
    • 2 → Blend
    • 3 → Blend Setback
  4. Rl → Radius/Rail interaction algorithm to apply.

Output parameters:

  1. Sf → Surface with eased edges.
  2. Ms → Resolved easing markers.
