Pipe Surface
00000000-0b04-4c6d-a90e-22c06efd1f1a

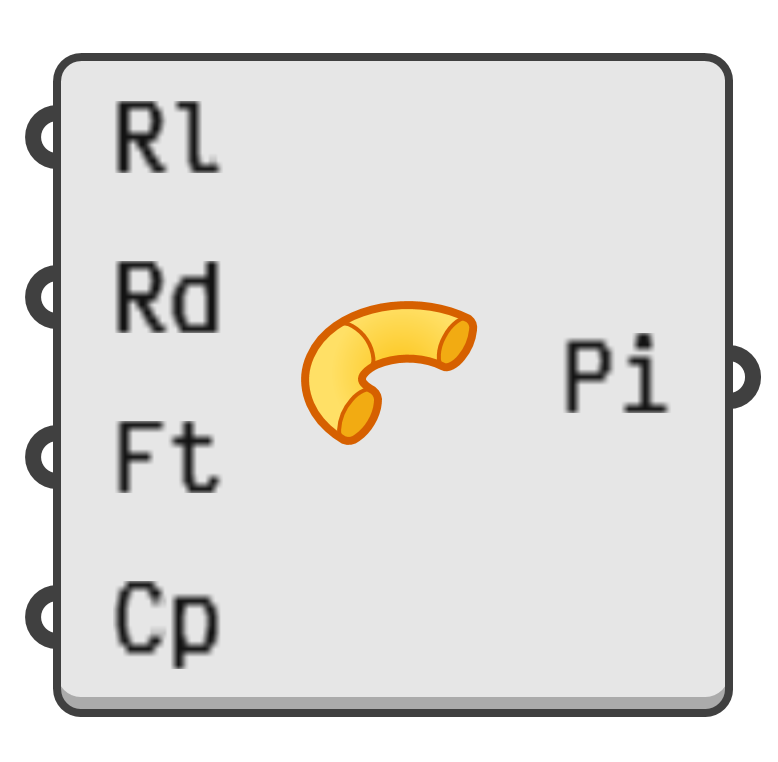

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a pipe with a constant radius around a curve.

Input parameters:

  1. Rl → Rail curve at the centre of the pipe.
  2. Rd → Radius of pipe.
  3. Ft → Fit a single surface to the rail curve.
    •  True → Fitted
    • False → Segmented
  4. Cp → Pipe cap shape.
    • 0 → None
    • 1 → Flat
    • 2 → Round

Output parameters:

  1. Pi → Pipe surface around rail curve.
