Vector Display
00000000-08e4-41b9-ab23-c36018777f94

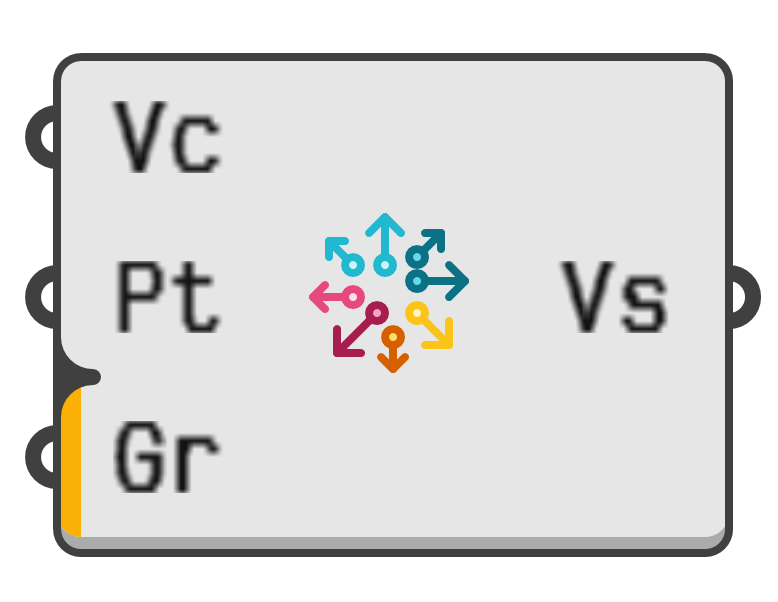

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Draw vectors with the available display styling options.

Input parameters:

  1. Vc → Vectors to style.
  2. Pt → Optional vector anchor points. If not specified, the incoming vectors must already have anchors.
  3. St → Optional vector shape style.
    • 0 → World
    • 1 → Camera
    • 2 → Screen
    • 3 → Pointer
    • 4 → Marker
  4. Wg → Optional line weights for each vector.
  5. Gr → Optional gradient to apply to vector lengths.
  6. Fn → Optional function to apply to vector lengths prior to gradient colouring.

Output parameters:

  1. Vs → Styled vectors.
