Colour From Fields
00000000-ffa9-4e1e-b197-61630be2aa9d

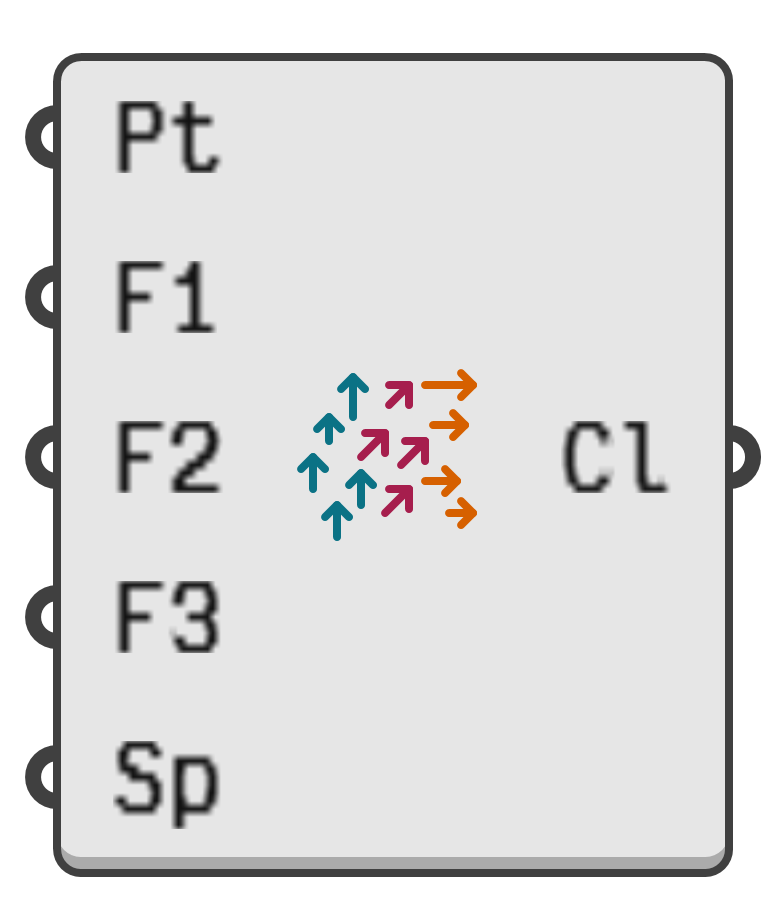

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a colour out of scalar field values.

Input parameters:

  1. Pt → Field measurement location.
  2. F1 → First scalar field to measure.
  3. F2 → Second scalar field to measure.
  4. F3 → Third scalar field to measure.
  5. Sp → Colour space to use.
    •  0 → Standard RGB
    •  1 → Linear RGB
    •  2 → HSL
    •  3 → HSV
    •  4 → H*SP
    • 10 → CMY
    • 20 → CIE-Lab*
    • 21 → CIE-XYZ
    • 22 → CIE-Yxy
    • 23 → Oklab

Output parameters:

  1. Cl → Colour with channel values derived from field measurements.
