Vector Relation
00000000-fe2a-4d40-9629-a533ceb70d71

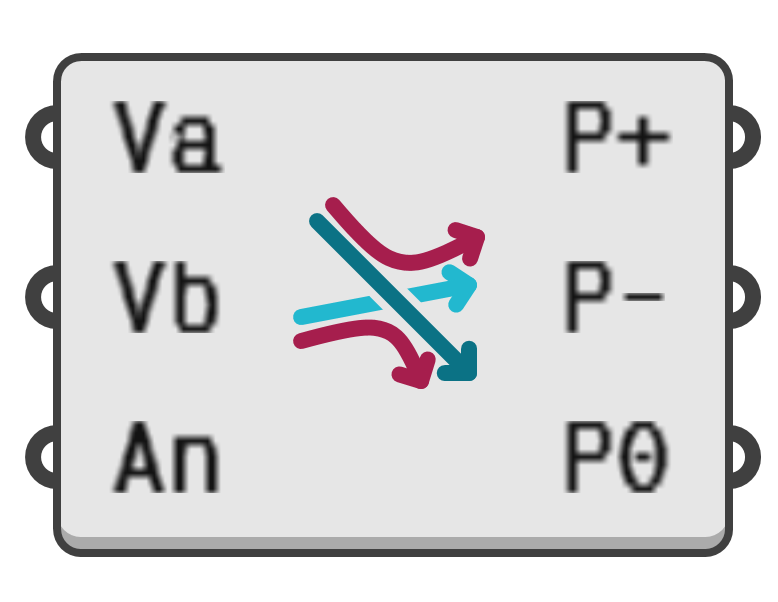

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Classify the relationship between two vectors.

Input parameters:

  1. Va → First vector for relationship.
  2. Vb → Second vector for relationship.
  3. An → Angle threshold for classification.

Output parameters:

  1. P+ → True if the vectors are parallel within the angle tolerance. QQ
  2. P- → True if the vectors are anti-parallel within the angle tolerance. QQ
  3. P0 → True if the vectors are perpendicular within the angle tolerance. QQ
