Fit Curve
00000000-f5ee-4d4e-bf24-09fa34d8d888

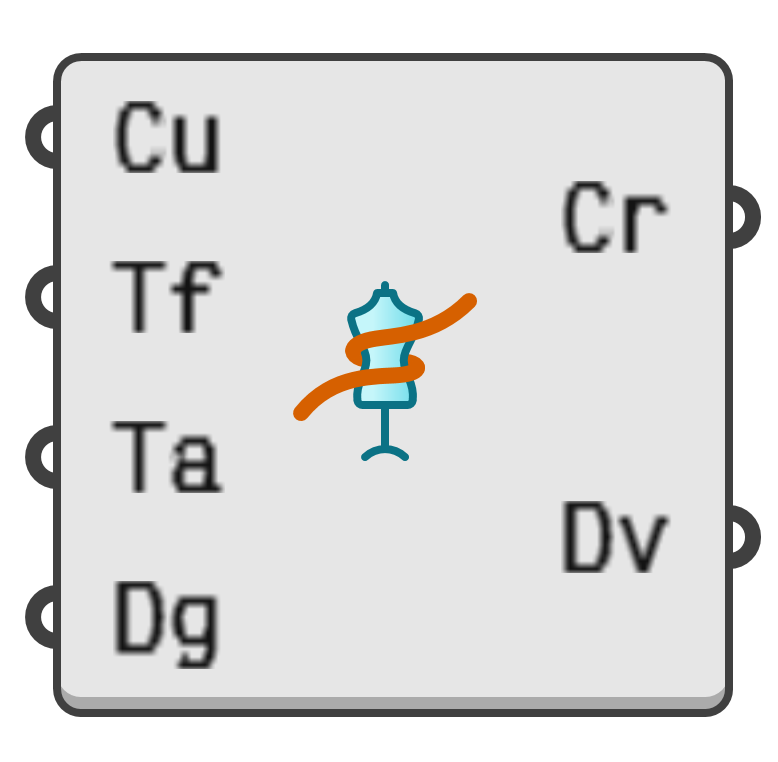

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Fit a curve to within a specified tolerance.

Input parameters:

  1. Cu → Curve to fit.
  2. Tf → Fitting tolerance as a measure of absolute deviation.
  3. Ta → Fitting tolerance as a measure of angular deviation.
  4. Dg → Optional curve degree override.

Output parameters:

  1. Cr → Fitted curve.
  2. Dv → Maximum deviation between the original and the fitted curve.
