Read 3dm File
00000000-f378-4138-b329-16501c7117d3

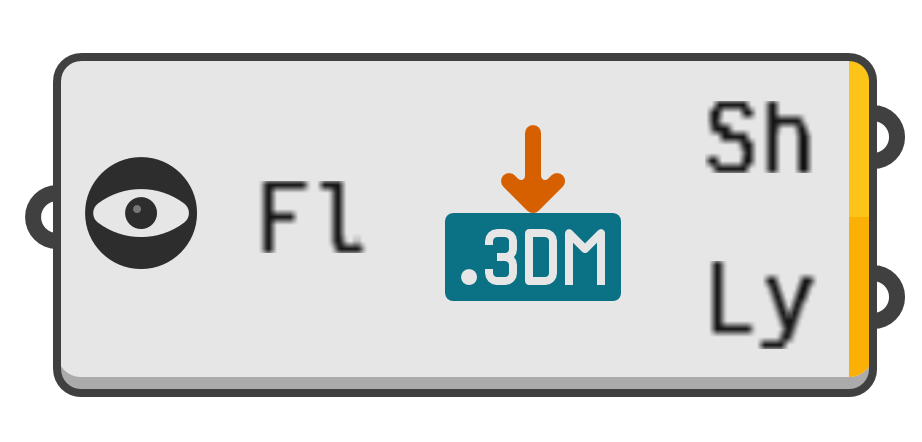

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Load the contents of a Rhino 3dm file.

Input parameters:

  1. Fl → Absolute path to the file.

Output parameters:

  1. Sh → Geometry contained in the file.
  2. Ly → Layers contained in the file.
  3. Vw → All named views in the document. The name is embedded in the view meta data.
  4. Cp → All named construction planes in the document. The name is embedded in the view meta data.
  5. Nt → Document text notes.
  6. Ks → User string keys at the document level.
  7. Us → User string values at the document level.
  8. Vr → 3dm file version of document.
