Cage Between Faces
00000000-efdf-4778-8176-3c842c7bdea2

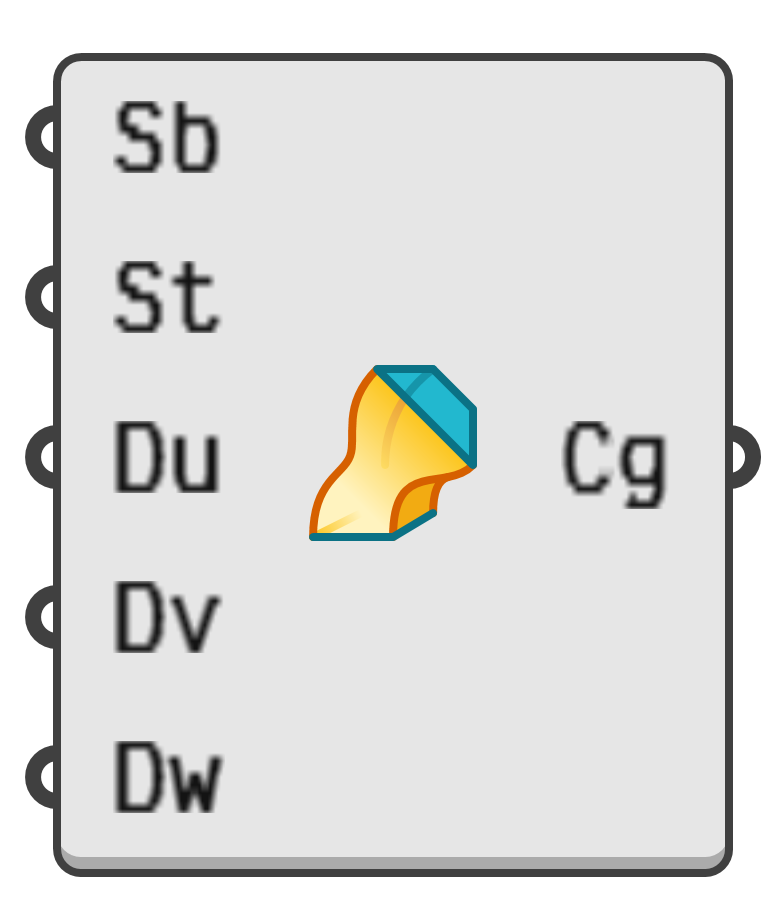

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Create a twisted box cage between two surfaces.

Input parameters:

  1. Sb → Surface for bottom face of cage.
  2. St → Surface for top face of cage.
  3. Du → Degree in cage U direction, between 1 and 7.
  4. Dv → Degree in cage V direction, between 1 and 7.
  5. Dw → Degree in cage W direction, between 1 and 7.

Output parameters:

  1. Cg → Twisted box cage between surfaces.
