Merge Coplanar Facets
00000000-ef3f-4ad3-b9eb-aa671459c530

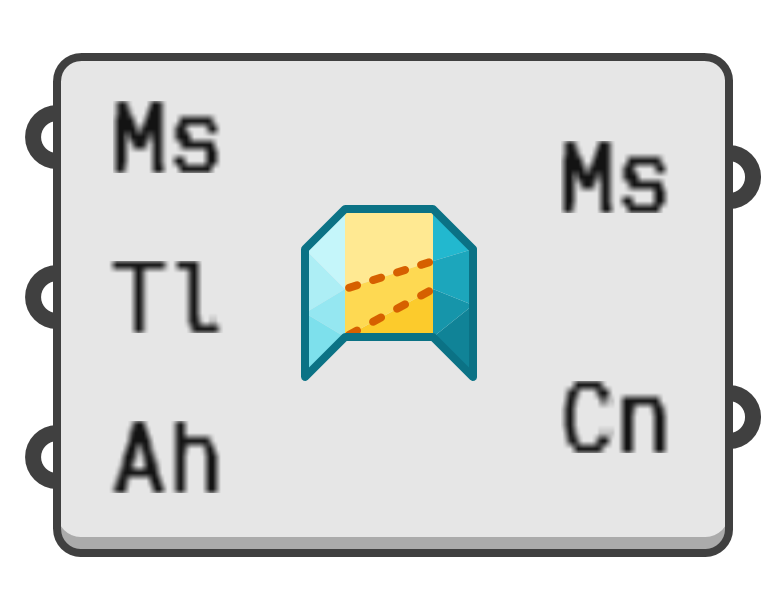

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Merge contiguous coplanar mesh facets into single n-gons.

Input parameters:

  1. Ms → Mesh whose facets to merge.
  2. Tl → Absolute planar tolerance.
  3. Ah → Allow the creation of n-gons with holes.
    •  True → Allow
    • False → Disallow

Output parameters:

  1. Ms → Mesh with merged coplanar facets.
  2. Cn → Number of newly created n-gons.
