Split Graph Region
00000000-eba4-44a6-986e-5c685b568a21

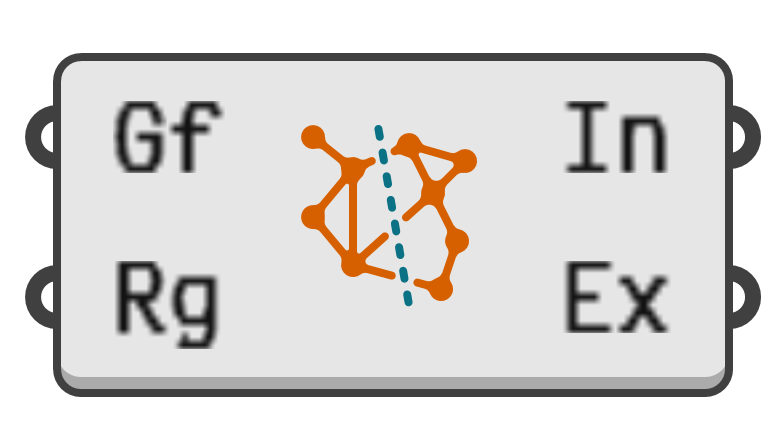

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Split a graph into two by distributing the nodes based on region inclusion.

Input parameters:

  1. Gf → Graph to split.
  2. Rg → Splitting region. All graph nodes will be projected onto the region plane.

Output parameters:

  1. In → Graph containing all nodes that fall within the region boundaries.
  2. Ex → Graph containing all nodes that fall outside the region boundaries.
