Smooth Mesh
00000000-eb39-4db9-958d-eb697ee66cf8

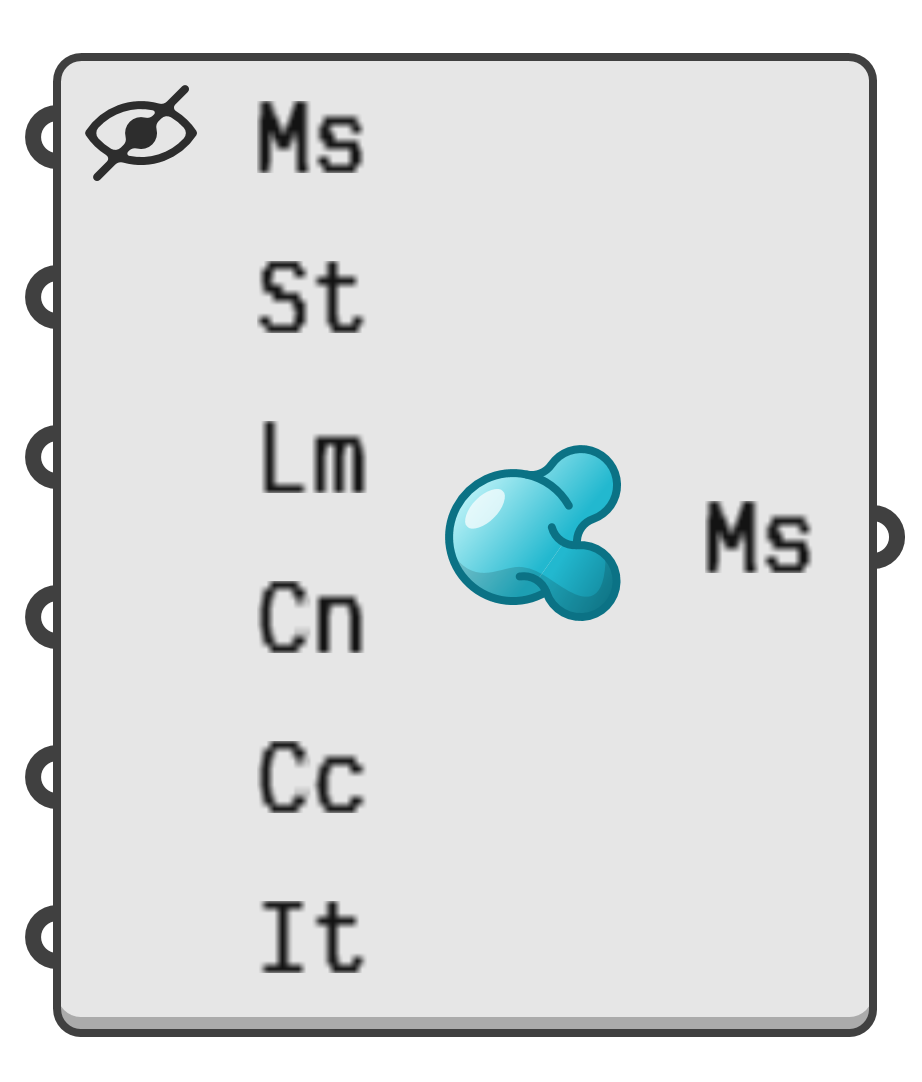

object preview
This page was generated from the component’s built-in descriptions. An in-depth article has not been written for it yet.

Smooth an existing mesh by moving vertices towards the averaged out locations of their neighbours.

Input parameters:

  1. Ms → Mesh to smooth.
  2. St → Smoothing strength as a factor between zero for no smoothing, and one for full smoothing.
  3. Lm → Optional limit for how far vertices may move.
  4. Cn → Clamp vertices on naked edges in place.
    •  True → Fixed
    • False → Free
  5. Cc → Clamp vertices on unwelded edges in place.
    •  True → Fixed
    • False → Free
  6. It → Number of times to apply the smoothing process.

Output parameters:

  1. Ms → Smoothed mesh.
